How to calibrate an electromagnetic flow meter?
Calibrating an electromagnetic flow meter doesn’t have to be complicated. Many engineers get stuck in dense standards and procedures, but in real-world operations, success comes down to three things: using the right reference, avoiding common mistakes, and making quick, reliable judgments. This guide strips away unnecessary complexity and focuses on what actually works in the field.

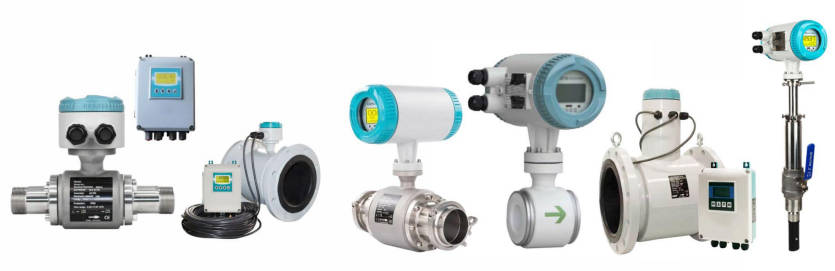

.jpg)
1. Pre-Calibration Preparation (Keep It Simple and Effective)
You don’t need a perfect lab setup—just ensure everything is functional and ready to go.
1.1 Key Equipment Checks (Focus on 3 Critical Points)
Skip full inspections. These three checks cover most issues:
- Electrodes
Check for scaling or oil contamination. Clean with ethanol; if stubborn, use ultrasonic cleaning for 5 minutes.
Why it matters: Fouling is the #1 cause of measurement error. - Sealing
Install the meter and run a low flow test. No leakage = good. If leaking, fix with sealing tape or gaskets. - Power & Signal Output
Power on and verify stable display. Check 4–20 mA output—fluctuations often indicate wiring issues.
1.2 Environment: Avoid Two Major Interferences
No need for strict temperature/humidity control. Just avoid:
- Strong electromagnetic interference
Stay at least 5 meters away from VFDs or large motors. - Pipeline vibration
Secure the pipe. Vibration leads to unstable readings.
1.3 Reference Instrument Selection
Avoid over-specifying:
- The reference meter should be 2 accuracy classes higher than the device under test.
(e.g., 0.5% DUT → use 0.2% reference) - Choose method based on flow rate:
- ≤ 50 m³/h → Gravimetric or volumetric method
-
50 m³/h → Reference flow meter comparison
1.4 Safety (Practical, Not Excessive)
- Clean water → gloves are enough
- Corrosive fluids → add goggles and proper sealing
- Always disconnect power before wiring
2. Core Calibration Methods (Focus on What Actually Works)
In real applications, only two methods matter:
2.1 Wet Calibration (Primary Method – Recommended)
Best approach: Reference flow meter comparison
Step-by-Step Process:
- Installation
- Install reference and test meter in series
- Ensure correct flow direction
- Straight pipe requirements:
- Upstream ≥ 10D
- Downstream ≥ 5D
(D = pipe diameter)
- Parameter Setup
- Keep DUT settings unchanged
- Match reference meter range with DUT
- System Stabilization
- Run fluid for 15–20 minutes
- Ensure stable flow and temperature (variation < 1°C)
- Data Collection
- Select 3–5 common flow points (e.g., 20%, 50%, 80%)
- Record both meters simultaneously
- Measure each point 3 times and average
- Error Calculation & Adjustment
Use this formula:
Error=Qmeasured−QreferenceQreference×100%\text{Error} = \frac{Q_{measured} - Q_{reference}}{Q_{reference}} \times 100\%Error=QreferenceQmeasured−Qreference×100%
- Adjust span factor if error exceeds allowable limits
- Repeat until within tolerance (e.g., ±0.5%)
2.2 Dry Calibration (For Troubleshooting Only)
Not valid for formal calibration, but useful for diagnostics:
- Electrode resistance check
Compare measured values with manual specifications - Signal simulation test
Input 4–20 mA signals (e.g., 12 mA = mid-scale)
Verify display response
3. Critical Field Tips (More Important Than Procedure)
These are the real-world “failure points”:
- Air bubbles = invalid calibration
Always vent the pipeline before testing - Electrode fouling returns quickly
Clean every 1–2 months in dirty media - Wrong calibration medium
Never use clean water to calibrate meters for corrosive fluids - Avoid parameter over-adjustment
Lock settings after calibration - Match pipe size with reference meter
Mismatch leads to large errors - Keep records simple
Log only:- Flow point
- Reference value
- Measured value
- Error
4. Calibration Interval (Flexible, Based on Application)
Forget rigid standards—use practical logic:
- Clean water, stable conditions → every 1.5–2 years
- Wastewater / slurry / corrosive fluids → every 6–12 months
- After repairs or component replacement → recalibrate immediately
- If deviation > 1% observed → recalibrate without delay
5. Quick Accuracy Check (Post-Calibration)
Method 1: Comparison Test
- Run both meters for 1 hour
- Total flow deviation within allowable error → acceptable
Method 2: Repeatability Test
- Same flow point, 3 measurements
- Variation ≤ 0.2% → stable and reliable
- Large fluctuation → investigate hardware issues first
Conclusion: Focus on What Works, Not What’s Written
Electromagnetic flow meter calibration is not about memorizing standards—it’s about executing correctly in real conditions. By focusing on proper preparation, using practical calibration methods, and avoiding common field mistakes, you can achieve reliable accuracy without unnecessary complexity.
For technicians and engineers alike, mastering these streamlined steps ensures faster calibration, fewer errors, and more stable long-term performance—which is what truly matters in industrial operations.
If you need professional advice or product recommendations, feel free to contact us anytime.
