Product Recommendation
Aister Instrument places technological innovation as the core, regards product quality as paramount, and strives for customer satisfaction as its ultimate goal.
LUGB High Temperature Vortex Flow Meter
Nominal diameter:
DN15～DN300mm
Accuracy:
liquid ±1.0%, gas (steam) ±1.5%, plug-in ±2.5%
Structure form:
Integrated, split, temperature and pressure compensation
Applicable medium:
liquid, gas, saturated steam, superheated steam
Vortex flowmeter is a volume flowmeter that measures the volume flow of gas, steam or liquid, the volume flow of the standard condition or the mass flow according to the Karman vortex principle. It is mainly used for the flow measurement of industrial pipeline medium fluids, such as gas, liquid, steam and other media.
ATMF In-line Thermal Mass Flowmeter
Measuring medium:
Various gases (except acetylene gas)
Pipe diameter range:
DN10-2000mm
Accuracy Degree:
±1～2.5%
Pipe material:
Carbon steel, stainless steel, plastic, etc
The thermal mass flowmeter is a flow meter based on the principle of thermal diffusion. The device uses the constant temperature difference method to measure the gas accurately. It has the advantages of small size, high digitization, easy installation, accurate measurement and so on.
ATWG Gas Turbine Flowmeter
Nominal diameter:
DN50-DN400
Functional application:
Mainly used for trade settlement, mobile prepaid system, remote meter reading
Advantages and characteristics:
Low starting flow, good repeatability, small pressure loss
Applicable medium:
Natural gas, compressed air, nitrogen, etc
ATWG gas turbine flowmeter is mainly used for the flow measurement of natural gas, air, nitrogen and other medium fluids in industrial pipelines, and is almost unaffected by fluid density, pressure, temperature, viscosity and other parameters when measuring the volume flow under working conditions.
Radar Level Meter
Application:
Slightly corrosive liquid, stirring, condensation
Measuring range:
120 m
Medium temperature:
- 40 ~ 120 °
Process pressure:
0.1 ~ 0.3 mpa
Measurement accuracy:
±1mm
80GHz frequency modulation wave FMCW radar product (also called millimeter wave radar), it uses a millimeter wave band with high frequency, it can detect smaller targets and achieve more precise positioning than microwave radar with higher resolution and stronger confidentiality. Therefore, it has important applications in long-distance target detection, strong smoke and dust environment, long-distance imaging, multi-spectral imaging, etc.

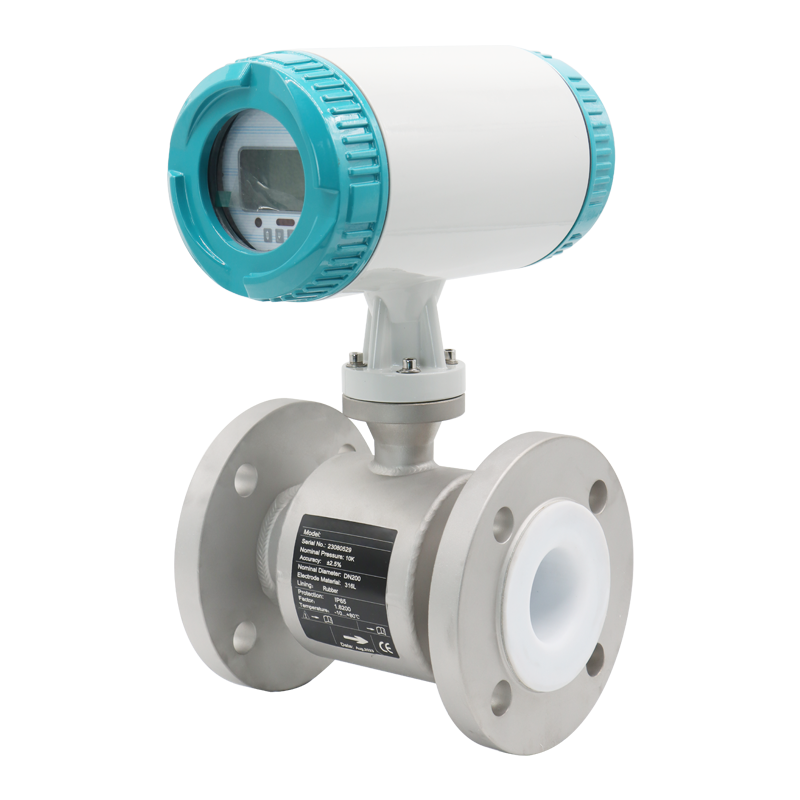

ATLD Flange Connected Electromagnetic Flow Meter
Measuring medium:
Conductive liquid
Diameter range:
DN3mm～DN3000mm
Accuracy:
± 0.5% of the indicated value, optional ± 0.3% or ± 0.2%
Measuring range (Flow rate):
0.01m/s～15m/s
Connection type:
Flange connection, thread connection, clamp connection, quick joint connection etc.
Electromagnetic flow meter is one of the most popular flow meters. Flange type electromagnetic flow meter has been used for more than 50 years worldwide. It is widely used for all conductive liquids in every industry, such as water, acid, alkali, milk, slurry etc.
LUGB High Temperature Vortex Flow Meter
ATMF In-line Thermal Mass Flowmeter
ATWG Gas Turbine Flowmeter
Radar Level Meter
ATLD Flange Connected Electromagnetic Flow Meter
