Gas Flow Meter Buying Guide: How to Choose the Right Type, Model, and Brand

Selecting the right gas flow meter is a critical decision that directly affects measurement accuracy, energy efficiency, and operational reliability. With multiple technologies and brands available, the key principle is simple:

The application determines the technology.

This comprehensive guide will help you clearly understand gas flow meter types, selection parameters, and reliable brands—so you can confidently choose the most suitable solution for your application.

1. Core Selection Principle: Application Determines Technology

There is no universal “best” gas flow meter. Each measurement technology is designed for specific operating conditions. Selecting the wrong type can result in inaccurate readings, unstable performance, or even complete measurement failure.

Before choosing a model or brand, always start by defining your actual application requirements.

2. Main Types of Gas Flow Meters and Typical Applications

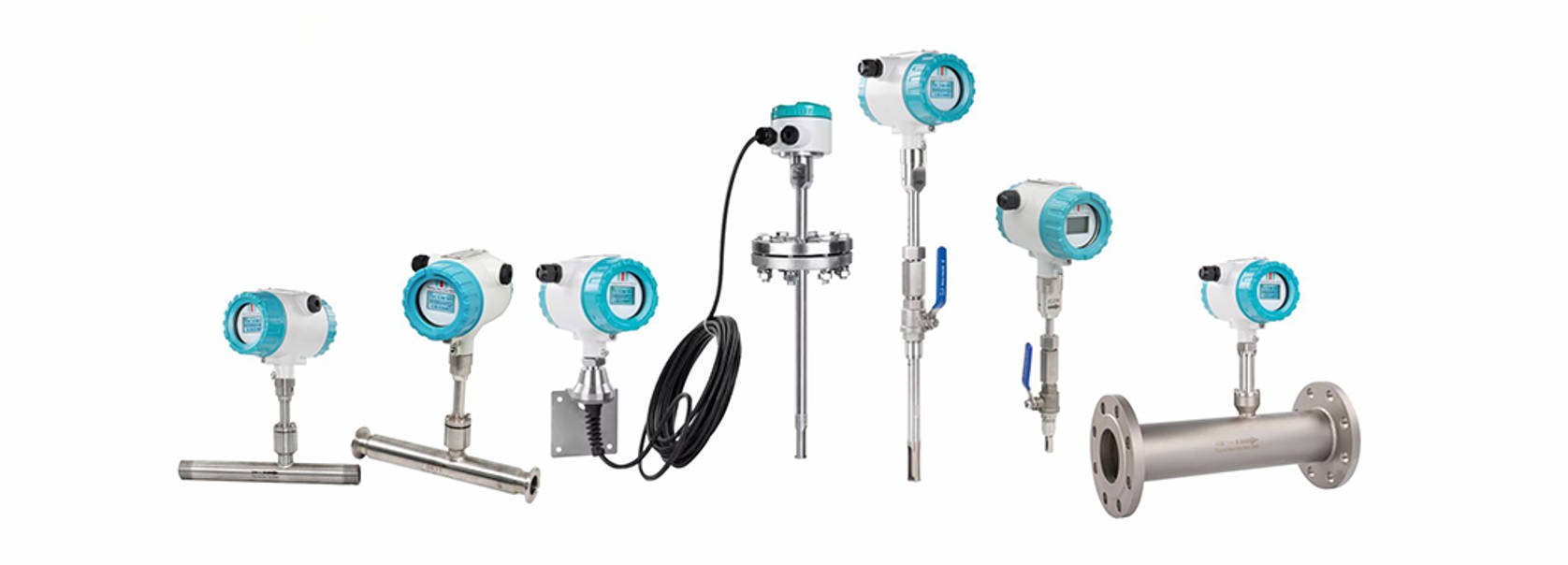

2.1 Thermal Mass Flow Meters

Best for:

• Compressed air energy management

• Fuel gas consumption monitoring

• Industrial process gas measurement

• Flue gas and emission monitoring

Key advantages:

• Direct mass flow measurement (no temperature or pressure compensation required)

• Extremely wide turndown ratio (up to 1000:1)

• Very sensitive at low flow rates

• Minimal pressure loss

Limitations:

• Sensitive to gas composition changes

• Higher cost compared to mechanical meters

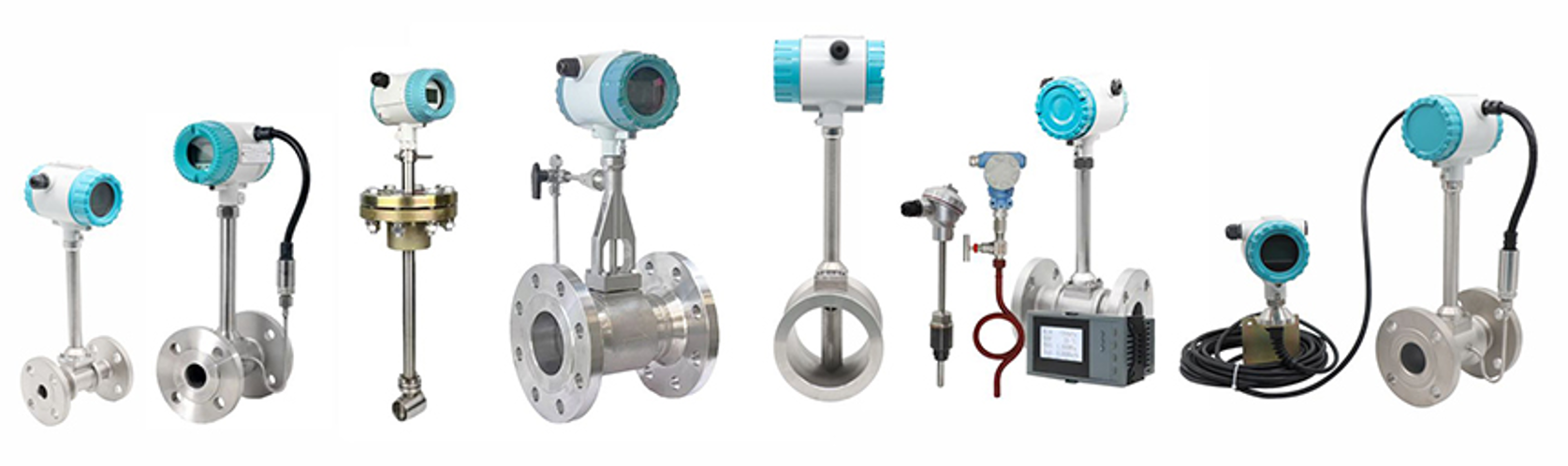

2.2 Vortex Flow Meters

Best for:

• Saturated and superheated steam

• Compressed air main pipelines

• Medium- and low-pressure natural gas

Key advantages:

• Rugged construction, high reliability

• Excellent resistance to high temperature and pressure

• Proven industrial technology

Requirements and notes:

• Temperature and pressure compensation required for gas

• Avoid strong vibration environments

• Straight pipe lengths must be respected

2.3 Ultrasonic Gas Flow Meters

Best for:

• Natural gas custody transfer and distribution stations

• Large-diameter flue gas measurement

• Compressed air main line verification

Key advantages:

• No pressure loss

• Wide measuring range

• Ideal for large pipe diameters (DN300 and above)

• Easy installation and low maintenance

Considerations:

• Gas must be relatively clean and dry

2.4 Differential Pressure (DP) Flow Meters

Best for:

• High-pressure natural gas custody transfer

• Power plant steam measurement

• High-parameter process gases

Key advantages:

• Mature technology with international standards (ISO, ASME)

• Suitable for extreme pressure and temperature

Limitations:

• Complex installation

• Permanent pressure loss

• Narrow turndown ratio

2.5 Gas Turbine Flow Meters

Best for:

• Clean natural gas measurement

• CNG fueling stations

• High-accuracy industrial gas metering

Key advantages:

• High accuracy and excellent repeatability

Requirements:

• Gas must be clean and dry

• Regular maintenance is necessary

2.6 Diaphragm Gas Meters

Application:

• Residential and small commercial natural gas metering

Key features:

• No external power required

• Cost-effective and durable

• Industry standard for civil gas measurement

3. Key Parameters You Must Define Before Selecting a Model

Before finalizing a specific gas flow meter, clearly define the following parameters:

3.1 Gas Medium

• Natural gas

• Compressed air

• Oxygen, CO₂, nitrogen

• Mixed or special gases

3.2 Flow Range

• Minimum flow

• Normal operating flow

• Maximum flow

• Units: Nm³/h, m³/h, kg/h

3.3 Operating Conditions

• Working pressure (absolute or gauge)

• Gas temperature

• Gas density or composition (for mixed gases)

3.4 Pipeline Conditions

• Pipe diameter (DN)

• Pipe material

• Installation orientation (horizontal or vertical)

• Available straight pipe lengths

3.5 Accuracy Requirements

• Custody transfer

• Process control

• Internal monitoring or estimation

• Typical accuracy: ±0.5%, ±1.0%, ±1.5%

3.6 Output and Communication

• 4–20 mA analog output

• Pulse output

• Digital communication: HART, Modbus, PROFIBUS DP

4. Recommended Gas Flow Meter Brands by Category

Choosing a reliable brand is as important as choosing the right technology. Below are proven manufacturers widely accepted in global markets.

Thermal Mass / Comprehensive Solutions

• Siemens

• Endress+Hauser

Vortex / Differential Pressure

• Yokogawa

• Emerson (Rosemount, Micro Motion)

• ABB

Ultrasonic Gas Flow Meters

• SICK

• KROHNE

Natural Gas Measurement Specialists

• Elster (Honeywell)

• Itron

Reliable Chinese Manufacturers

• Aister – Strong expertise in DP and vortex flow meters

• Chongqing Chuanyi – Comprehensive product range and strong domestic support

• Feejoy – Integrated solutions from sensors to systems

• Kingwell – Specialized in gas and energy metering

5. Practical Selection Tips from Industry Experience

• Energy measurement → Thermal mass flow meters
  Ideal for compressed air and fuel gas energy management

• Custody transfer → Standards-compliant meters
  Use ultrasonic, turbine, or standard orifice plates approved by regulations

• Steam measurement → Vortex flow meters
  Best solution for saturated and superheated steam

• Large pipelines (DN300+) → Ultrasonic flow meters
  Most economical and maintenance-friendly option

• Residential gas → Diaphragm gas meters
  The only practical and approved choice

Conclusion: Choose the Right Gas Flow Meter with Confidence

Selecting a gas flow meter is not about choosing the most expensive or the most popular product—it is about choosing the right technology for your specific application.

By clearly defining your gas type, operating conditions, accuracy requirements, and installation constraints, you can narrow down the correct meter type and select a reliable brand that fits your budget and performance expectations.

If you need professional advice or product recommendations, feel free to contact us anytime.
