Steam Flow Meter Recommendation: Accurate and Reliable Solutions for Steam Measurement

Accurate steam flow measurement plays a critical role in energy management, cost control, and stable operation of industrial processes. Selecting a suitable and reliable flow meter can significantly improve measurement accuracy while reducing maintenance and operating costs.
Based on technical analysis and proven industrial applications, vortex flow meters are widely used solutions for steam pipeline measurement.

Why Vortex Flow Meters Are the First Choice for Steam Measurement

Proven Measurement Principle

Vortex flow meters operate based on the Kármán vortex shedding principle. When steam flows past a bluff body, vortices are generated at a frequency proportional to the flow velocity. This principle is inherently stable and well-suited for high-temperature steam applications.

Key Technical Advantages

High accuracy and repeatability
With temperature and pressure compensation, high-quality vortex flow meters can achieve:

• Accuracy: ±1.0% to ±1.5%

• Repeatability: ±0.2%

This level of performance fully meets industrial steam metering requirements.

Wide turndown ratio
Typical turndown ratios of 10:1 or higher allow reliable measurement across varying steam loads caused by seasonal or production fluctuations.

Low maintenance requirements
With no moving parts, vortex flow meters offer long-term stability, minimal wear, and reduced maintenance costs.

Low permanent pressure loss
Compared with traditional orifice plates, vortex meters reduce permanent pressure loss by more than 60%, improving overall energy efficiency.

Smart integration
Modern vortex flow meters support integrated temperature and pressure sensors, enabling direct mass flow calculation and simplified system architecture.

Installation and Maintenance Advantages

Vortex flow meters feature a compact and robust design, making them easy to install and maintain.

• Straight pipe requirements are typically 10D upstream and 5D downstream

• No impulse lines, condensate pots, or complex heat tracing systems required

• Faster installation and lower engineering costs compared with differential pressure flow meters

Key Practices for Accurate Steam Flow Measurement

1. Steam Type Identification and Compensation

Saturated steam
Pressure compensation is recommended due to:

• Faster response time

• Lower cost

• Higher long-term reliability

Superheated steam
Both temperature and pressure compensation are essential to accurately calculate steam density in real time.

2. Proper Installation Guidelines

• Install the flow meter on the upper side of a horizontal steam pipe to prevent condensate accumulation

• Ensure sufficient straight pipe lengths and keep distance from valves, elbows, and reducers

• In high-vibration environments, use vibration dampers or select anti-vibration vortex flow meters

3. Steam Quality Control

Dry steam is critical for accurate measurement.
Installing a high-efficiency steam separator upstream of the flow meter helps:

• Prevent measurement errors

• Protect the sensor from water hammer

• Extend service life

Recommended Vortex Flow Meter Brands and Models

Leading International Brands

• Endress+Hauser (E+H) – Proline series
  Renowned for exceptional reliability and advanced diagnostics

• Yokogawa – DY series
  Excellent vibration resistance and long-term stability

• Rosemount – 8800 series
  High intelligence level and strong system integration capabilities

Recommended Chinese Manufacturer: Aister Instrument

Among domestic brands, Aister Instrument vortex flow meters stand out for performance, flexibility, and cost-effectiveness.

Key Product Features

• High measurement accuracy using advanced digital signal processing to suppress vibration interference

• Wide temperature range: –40 °C to +350 °C, suitable for most steam applications

• Optimized vortex shedder design (triangular bluff body) for strong and stable signal output

• Flexible configurations, including integrated and remote temperature/pressure compensation

• Fast local technical support and reliable spare parts availability

Model Selection Suggestions

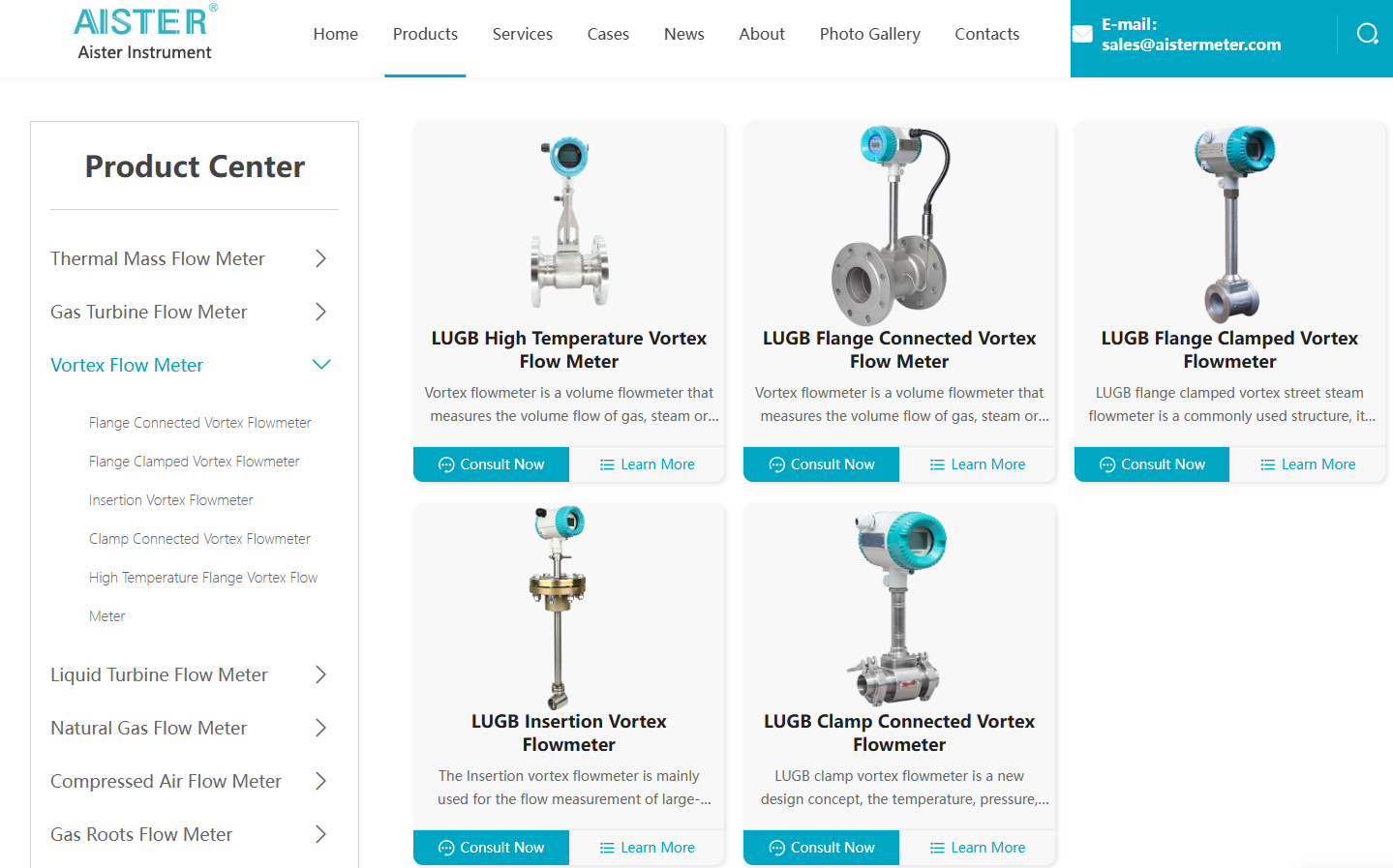

• Saturated steam: ATLU series integrated vortex flow meter with pressure compensation

• Superheated steam: AT-LUG series multi-parameter vortex flow meter with temperature and pressure sensors

• Large-diameter pipelines: Insertion-type vortex flow meters to significantly reduce investment costs

Practical Steam Flow Meter Selection Process



1. Define objectives
   Measurement purpose, accuracy requirement, and budget

2. Confirm operating conditions
   Steam pressure, temperature, flow range, and pipe size

3. Select meter size
   Match nominal diameter to flow range while allowing future capacity expansion

4. Determine configuration
   Choose compensation type and protection level based on steam state and environment

5. Evaluate suppliers
   Compare performance, price, technical support, and after-sales service

Conclusion

Vortex flow meters offer a reliable and proven solution for steam pipeline measurement, combining high accuracy, low pressure loss, and minimal maintenance requirements. When properly selected, installed, and compensated, they perform consistently in both saturated and superheated steam applications.

If you need professional advice or product recommendations, feel free to contact us anytime.
