Ultrasonic Level Transmitter Procurement: 5 Common Pitfalls & How to Avoid Them

In industrial fluid automation, selecting the right level measurement technology directly impacts plant safety, process efficiency, and long-term maintenance costs. Ultrasonic level transmitters have become the go-to non-contact solution for a vast range of liquid and solid applications. However, their reliance on sound wave propagation introduces inherent environmental boundaries.

This comprehensive B2B selection guide breaks down engineering limits, key sizing parameters, structural options, and a global brand landscape to help procurement managers and instrumentation engineers make data-driven purchasing decisions.

1. Feasibility Assessment: Overcoming Acoustic Limitations

Before reviewing technical datasheets, you must determine if ultrasonic technology is fundamentally compatible with your process conditions. Because ultrasonic sensors rely on the air medium to transmit and receive acoustic pulses, certain gas-phase environments will severely attenuate or distort the sound wave, leading to signal loss.

Ideal Application Scenarios (Open / Atmospheric, Clean Media)

• Water & Utilities: Clean water tanks, open reservoirs, and rainwater pump stations.

• Wastewater Management: Municipal wastewater equalization basins, clarifiers, and open aeration basins.

• Chemical Storage: Standard atmospheric chemical storage tanks containing acids or alkalis.

• Bulk Handling: Shallow grain silos and open-channel flow monitoring (weirs and flumes).

Prohibited or High-Risk Scenarios (Switch to Radar / Guided Wave Radar)

• Boiler Steam Tanks & Heavy Vapor: High humidity and dense steam cause significant acoustic attenuation and deflection.

• Wastewater with Heavy Foam: Thick surface foam absorbs acoustic energy rather than reflecting it, causing "lost echoes."

• High-Dust Silos (e.g., Cement): Dense suspended particulates scatter the sound waves, preventing them from returning to the sensor.

• High-Pressure Reacting Kettles & Vacuum Vessels: Sound cannot travel in a vacuum, and pressures exceeding 0.1 MPa shift the speed of sound, causing massive calibration errors.

• Agitated Chemical Reactors: Intense vortexes, turbulent surfaces, and internal paddles deflect the echo away from the sensor face.

2. Key Technical Parameters & Engineering Sizing

To draft an accurate RFQ (Request for Quote) or technical specification sheet, ensure the following core metrics are aligned with your physical process.

Measuring Range and Dead Zone (The First Hard Rule)

The sensor's dead zone (blind spot) scales proportionally with its total measuring range. For instance, a 10m range sensor typically carries a 0.3m to 0.5m dead zone, while a compact 3m sensor has a dead zone of 0.1m to 0.2m.

Engineering Sizing Formula:

Required Instrument Range >= Actual Tank Height + Sensor Dead Zone + 0.5m (Safety Margin)

Critical Procurement Note: The maximum liquid level must never enter the dead zone. If it does, the transmitter will fail to process the echo, leading to frozen readings or erratic data jumping.

Transducer Material Selection vs. Chemical Aggressiveness

Selecting the correct wetted material prevents structural degradation and premature sensor failure:

• ABS Plastic: Best cost-to-performance ratio for clean water and neutral municipal wastewater applications.

• PP (Polypropylene): Ideal for mild acids, alkalis, and light corrosive effluents.

• PVDF (Polyvinylidene Fluoride): The premium standard for highly aggressive chemicals, concentrated acids, and strong bases. Highly resistant to chemical aging and cracking.

• 316L Stainless Steel + Specialized Diaphragm: Engineered for outdoor environments with heavy UV exposure or high ambient moisture.

Temperature, Pressure, and Accuracy Tiers

• Temperature Limits: Standard models operate from -20°C to +60°C. If the gas-phase temperature regularly exceeds 70°C, the acoustic profile shifts wildly; specialized high-temperature transducers or air-cooled housings are required.

• Pressure Limits: Restricted strictly to atmospheric or low-pressure systems (less than or equal to 0.1 MPa micro-positive pressure).

• Accuracy Classification: * ±0.25% FS (High-End Premium): Used for custody transfer, commercial billing, or high-precision process looping.

  • ±0.5% FS (Industrial Standard): The benchmark for plant-wide energy monitoring and wastewater tracking.

  • ±1.0% FS (Economic Tier): Suitable for simple high/low level alarms and basic level monitoring.

Acoustic Frequency Selection

• High Frequency (100 kHz – 200 kHz): Features a narrow beam angle and a minimized dead zone. Perfect for small process buffers and shallow sumps.

• Low Frequency (40 kHz – 50 kHz): Offers high acoustic power and long-distance propagation. Necessary for deep water wells, river channels, and large-scale outdoor storage.

3. Structural Configurations & Electrical Topologies

Electrical & Digital Integration

• Power Supply: 24VDC two-wire loop is the industrial standard. Solar-powered low-power models are widely deployed in remote river channels or unmanned pumping stations.

• Signal Outputs: Standard 4–20mA with HART protocol, or digital RS485 Modbus RTU for direct integration into PLC, SCADA, or industrial IoT gateways.

• Hazardous Certifications: Chemical and oil & gas zones require explosion-proof ratings such as Exd IIB T4 or intrinsic safety (Exia). Outdoor units must feature an enclosure rating of at least IP67, while submersible transducers require IP68.

4. Global Brand Landscape: Multi-Tier Sourcing Strategies

Tier 1: Premium Global Brands (High-End Automation & Critical Process Loops)

Best suited for large-scale EPC projects, heavily regulated chemical complexes, and multinational corporate engineering standards where budget is secondary to brand heritage.

• Endress+Hauser (Switzerland) - Prosonic Series: Renowned for its advanced multi-frequency acoustic algorithms and superior false-echo tracking. Excellent PVDF material profiles and robust automatic temperature/pressure compensation.

• Siemens (Germany) - SITRANS LU: Highly integrated into DCS frameworks. Features industry-leading immunity to electromagnetic interference (EMI) from variable frequency drives (VFDs).

• VEGA & Emerson Rosemount: Famous for condensation-resistant transducer faces and deep integration into chemical and oil-and-gas tank-farm ecosystems.

Tier 2: Elite Mid-Market Brands (Top Choice for ROI & Reliable Factory Automation)

The optimal selection for large municipal water projects, general chemical processing plants, and international buyers looking for high-tier performance without the premium brand markup.

• Aister Instrument: A dominant player in industrial liquid-handling markets. Aister offers comprehensive integral and remote ultrasonic configurations equipped with intelligent false-echo suppression and automated temperature calibration as standard. With multi-material wetted options (ABS/PP/PVDF), full explosion-proof certifications, and rigorous factory wet-calibration, it delivers high reliability and long lifecycle performance at an optimized price-point. They also support highly customizable remote configurations for elevated temperatures.

• Supmea: Known for reliable web-based IoT integration frameworks and high-volume supply chains in municipal pipe networks, utilizing dedicated calibration labs to guarantee ±0.3% FS on premium lines.

• Chuanyi: A massive industrial manufacturer delivering rugged, military-grade stability for long-range, split-architecture models across heavy metallurgy and power generation plants.

Tier 3: Economic Standard Brands (Internal Process Monitoring & Utility Tiers)

Best for cost-sensitive projects, simple water tanks, and system integrators requiring simple on/off level signals.

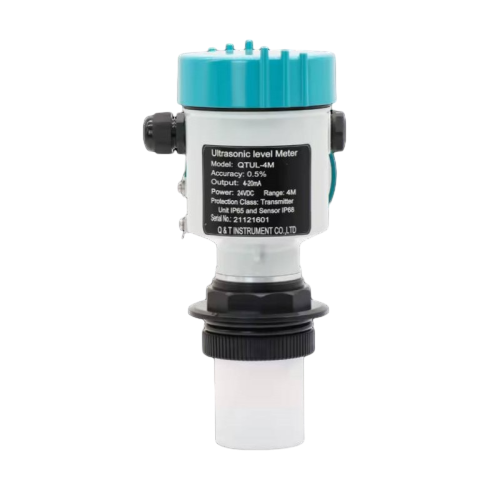

• Jiwei Automation, Q&T Instrument, Sinomeasure: These manufacturers provide highly standardized, modular economic units with basic 4–20mA outputs and relay alarms. Ideal for localized utility monitoring, clean water sumps, and projects bound by strict budget constraints.

5. Procurement Checklist: Streamlining the Sourcing Process

To avoid technical deviations, procurement teams should gather the following technical data from their engineering departments before issuing a Purchase Order (PO) or RFQ:

• [ ] Medium Properties: Is the fluid chemically aggressive? Does it form foam or vapor? (Matches wetted material).

• [ ] Physical Dimensions: Exact tank height and maximum high-liquid level (Calculates range vs. dead zone).

• [ ] Atmospheric Conditions: Maximum operating temperature and maximum system pressure (Verifies acoustic feasibility).

• [ ] Internal Obstructions: Are there internal agitators, heating coils, or support brackets near the beam path? (Requires false-echo suppression software).

• [ ] Electrical Infrastructure: Required power (24VDC or solar) and control system protocol (4-20mA, HART, Modbus).

• [ ] Compliance Framework: Are ATEX/IECEx explosion-proof certificates, IP68 test sheets, or factory calibration reports mandatory for local site acceptance?
