Selecting the right gas turbine flow meter is critical for accurate gas measurement, energy management, and process control in industrial applications. Whether it is used for natural gas, compressed air, nitrogen, biogas, or other clean gases, the correct flow meter selection directly affects measurement accuracy, operating costs, and long-term reliability.

Many buyers make the mistake of choosing a gas turbine flow meter only according to pipeline size or purchase price. However, professional selection requires a comprehensive evaluation of multiple factors, including gas type, flow range, operating pressure, temperature, gas cleanliness, accuracy requirements, installation conditions, and communication requirements.

A properly selected gas turbine flow meter can provide stable measurement performance, low maintenance requirements, and excellent cost efficiency. On the other hand, an unsuitable model may result in inaccurate readings, excessive pressure loss, frequent maintenance, or even premature failure.

This guide explains how to select a gas turbine flow meter based on real industrial requirements, including key selection parameters, performance considerations, installation requirements, common mistakes, and purchasing recommendations.

1. What Should You Consider Before Selecting a Gas Turbine Flow Meter?

Before selecting a gas turbine flow meter, engineers should first understand the actual operating conditions rather than selecting a model based only on pipe diameter.

The key selection parameters include:

• Gas type
• Minimum, normal, and maximum flow rate
• Operating pressure
• Operating temperature
• Pipeline size
• Required accuracy
• Gas cleanliness
• Installation environment
• Output signal and communication protocol
• Explosion-proof requirements

Among these factors, flow range matching and gas conditions are the most important factors affecting measurement performance.

2. Match the Gas Turbine Flow Meter with Your Application Conditions

2.1 Gas Type and Cleanliness

Gas turbine flow meters are widely used for clean and dry gases because they measure flow by detecting the rotational speed of a turbine rotor driven by gas velocity.

Common applications include:

• Natural gas measurement
• Compressed air monitoring
• Nitrogen measurement
• Oxygen measurement
• Industrial gas measurement
• Biogas measurement

However, gas quality has a significant impact on service life.

Clean and dry gases

For applications such as:

• Natural gas
• Nitrogen
• Dry compressed air

A standard aluminum alloy gas turbine flow meter is usually sufficient.

Advantages:

• High measurement accuracy
• Low pressure loss
• Long service life
• Cost-effective solution

Gas containing moisture or small particles

For slightly contaminated gas applications:

• Wet compressed air
• Gas with small impurities
• Low-quality biogas

Recommended solutions:

• Install a suitable upstream filter
• Select wear-resistant bearings
• Consider ceramic bearing designs

Particles and liquid droplets can accelerate bearing wear and affect rotor balance.

Corrosive gases

For gases with corrosive characteristics, such as:

• Biogas containing hydrogen sulfide
• Acidic industrial exhaust gas

Material selection becomes important.

Recommended options:

• 316L stainless steel body
• Corrosion-resistant internal components
• Suitable sealing materials

Applications not recommended for turbine flow meters

Gas turbine flow meters are generally not suitable for:

• High dust concentration gases
• Gas containing large amounts of liquid droplets
• Sticky or oily gas

These conditions may cause:

• Rotor blockage
• Bearing damage
• Measurement instability

In these applications, other technologies such as thermal mass flow meters or ultrasonic flow meters may be more suitable.

3. Flow Range Selection: The Most Important Step

One of the most common mistakes when purchasing a gas turbine flow meter is selecting the meter according to pipe size instead of actual flow conditions.

The correct selection principle is:

The flow meter size should be determined by operating flow rate, not simply by pipeline diameter.

3.1 Minimum, Normal, and Maximum Flow Rate

Before selecting a model, users should provide:

• Minimum operating flow
• Normal operating flow
• Maximum operating flow

The ideal operating range is usually:

20%–80% of the meter measuring range

Within this range, the turbine rotor operates more stably and provides better accuracy.

3.2 Avoid Low Flow Operation

If the actual flow is too low compared with the meter range:

• Rotor speed becomes unstable
• Measurement error increases
• Starting flow limitations may affect accuracy

For example:

A DN100 pipeline does not always require a DN100 flow meter. If the actual gas consumption is low, a smaller meter may provide better measurement performance.

3.3 Avoid Overloading

Continuous operation above the maximum flow range may cause:

• Excessive rotor speed
• Bearing wear
• Reduced service life
• Increased measurement error

Recommended principle:

• Normal flow: within 20%–80% range
• Maximum continuous flow: below rated capacity

4. Pressure and Temperature Considerations

Gas volume changes significantly with pressure and temperature.

For example, the same amount of gas will occupy different volumes under different pressure and temperature conditions.

Therefore, industrial gas measurement often requires:

• Temperature compensation
• Pressure compensation
• Flow conversion to standard conditions

A gas turbine flow meter with integrated temperature and pressure compensation can automatically convert operating volume flow into standard volume flow.

Common standard conditions include:

• 20°C / 101.325 kPa
• 0°C / 101.325 kPa

For applications such as:

• Natural gas billing
• Gas distribution
• Energy management

temperature and pressure compensation is usually essential.

5. Accuracy, Rangeability and Bearing Selection

5.1 Accuracy Class Selection

Different applications require different accuracy levels.

Gas trade measurement

Examples:

• Natural gas stations
• Gas distribution systems
• Commercial gas measurement

Recommended:

• Higher accuracy models
• Regular calibration
• Temperature and pressure compensation

Industrial energy monitoring

Examples:

• Factory compressed air systems
• Nitrogen consumption monitoring
• Internal energy management

Recommended:

• 1.0 class accuracy
• Good repeatability
• Reasonable cost

Process monitoring

Examples:

• Ventilation gas monitoring
• Non-critical process control

Recommended:

• Standard accuracy models

Choosing unnecessarily high accuracy may increase investment without improving actual operational value.

5.2 Range Ratio (Turn Down Ratio)

Range ratio indicates the measurement range from minimum to maximum flow.

Common options:

• Standard turbine flow meter: 10:1
• Improved models: 20:1
• High-performance models: up to 30:1

For applications with:

• Large flow fluctuation
• Frequent startup and shutdown
• Variable production demand

A wider range ratio is recommended.

5.3 Bearing Selection

The bearing is one of the most important components affecting turbine flow meter lifetime.

Metal bearing

Advantages:

• Lower cost

Limitations:

• Higher friction
• More maintenance requirements

Suitable for:

• Simple applications
• Intermittent operation

Ceramic bearing

Advantages:

• Wear resistance
• Low friction
• Longer service life

Suitable for:

• Industrial gas measurement
• Continuous operation

Magnetic suspension bearing

Advantages:

• Almost no mechanical contact
• Very low starting flow
• Excellent long-term stability

Suitable for:

• High-accuracy gas measurement
• Large natural gas applications

6. Additional Features and Configuration Selection

Besides basic measurement performance, modern industrial users also need to consider signal output, communication, explosion protection, and data management requirements.

A properly configured gas turbine flow meter can integrate more easily into industrial control systems and improve operational efficiency.

6.1 Display and Power Supply Options

For field applications, an integrated display is highly recommended.

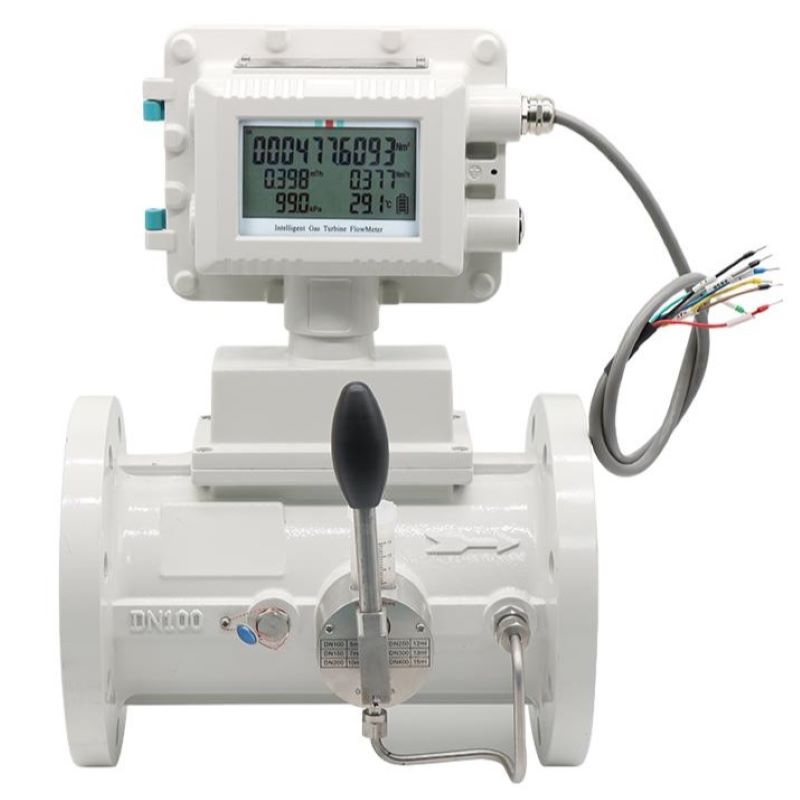

A typical intelligent gas turbine flow meter can display:

• Instantaneous flow rate
• Totalized flow volume
• Temperature value
• Pressure value
• Battery status
• Alarm information

Common power supply options include:

Battery-powered models

Suitable for:

• Remote gas pipelines
• Outdoor installation
• Locations without stable power supply

Advantages:

• Easy installation
• Low wiring requirements
• Long operating time

External power supply models

Suitable for:

• Factory automation systems
• Continuous monitoring applications

Advantages:

• Stable communication
• Suitable for integration with PLC/DCS systems

6.2 Output Signal and Communication Selection

Different industrial systems require different communication methods.

Common output options include:

Pulse Output

Suitable for:

• Basic flow totalization
• Simple monitoring systems

4–20mA Output

Suitable for:

• Industrial control systems
• PLC integration
• Process automation

RS485 Modbus RTU

Suitable for:

• Energy management systems
• Remote monitoring
• Multiple device communication

HART Communication

Suitable for:

• Advanced industrial automation
• Digital configuration and diagnostics

Before purchasing, users should confirm compatibility with their existing control system.

6.3 Explosion-Proof and Protection Requirements

For applications involving flammable gases, safety certification is a key requirement.

Typical applications include:

• Natural gas stations
• Chemical plants
• Oil and gas facilities
• Biogas systems

Important considerations include:

• Explosion-proof certification
• Protection class
• Installation environment

Common protection requirements:

• Explosion-proof design
• IP65/IP67 outdoor protection
• Higher protection levels for underground or humid environments

The selected gas turbine flow meter should comply with local safety regulations and project requirements.

7. Installation Requirements for Gas Turbine Flow Meters

Even a high-quality flow meter may not achieve expected accuracy if installation conditions are incorrect.

Installation factors directly influence measurement stability.


7.1 Straight Pipe Length Requirements

Gas turbine flow meters are sensitive to flow disturbances caused by:

• Elbows
• Valves
• Reducers
• Pipe expansions

A common recommendation is:

• Upstream straight pipe: ≥10D
• Downstream straight pipe: ≥5D

Where D represents pipe diameter.

If installation space is limited:

Possible solutions:

• Install a flow straightener
• Optimize piping layout
• Select a suitable installation position

7.2 Installation Direction



Gas turbine flow meters are usually installed horizontally.

Before installation, check:

• Flow direction marking
• Pipe cleanliness
• Internal alignment
• Mechanical stress from piping

Incorrect installation may cause:

• Rotor vibration
• Bearing damage
• Measurement deviation

7.3 Filter and Accessories



For gas applications, accessories are often as important as the meter itself.

Recommended accessories include:

Gas Filter

Purpose:

• Remove dust and particles
• Protect bearings
• Extend service life

Flow Straightener

Purpose:

• Reduce turbulence
• Improve measurement stability

Temperature and Pressure Sensor

Purpose:

• Convert operating flow into standard flow

A complete measurement system usually includes:

Pipeline → Filter → Straightener → Gas Turbine Flow Meter → Temperature/Pressure Compensation → Control System

8. Gas Turbine Flow Meter Selection Mistakes to Avoid

Mistake 1: Selecting Only According to Pipe Size

Many buyers think:

"The pipeline is DN100, so I need a DN100 flow meter."

This is incorrect.

The correct selection depends on:

• Actual flow range
• Pressure
• Temperature
• Gas density

A correctly sized smaller meter may provide better accuracy than an oversized meter.

Mistake 2: Ignoring Temperature and Pressure Compensation

Unlike liquids, gases are highly compressible.

Without compensation:

• Volume measurement changes with pressure
• Billing accuracy may be affected
• Energy calculations may become inaccurate

For commercial gas measurement, compensation is usually necessary.

Mistake 3: Choosing the Lowest Price Product

The initial purchase price is only part of the total cost.

A low-quality gas turbine flow meter may result in:

• Frequent maintenance
• Bearing replacement
• Calibration problems
• Production interruptions

Professional buyers evaluate:

• Product reliability
• Calibration capability
• Spare parts availability
• Technical support

Mistake 4: Ignoring Gas Cleanliness

Dust and liquid contamination are among the most common causes of turbine flow meter failure.

Recommended practices:

• Confirm gas quality before selection
• Install proper filtration
• Choose suitable bearing materials

Mistake 5: Selecting Excessive Accuracy

Higher accuracy is not always better.

For example:

• Internal compressed air monitoring may not require custody-transfer accuracy.
• Excessive accuracy requirements can increase cost significantly.

The best selection is the one that matches the actual application.

9. How to Select a Reliable Gas Turbine Flow Meter Manufacturer?

When choosing a supplier, buyers should evaluate more than product appearance and price.

Important factors include:

Manufacturing Capability

Check whether the manufacturer has:

• Complete production facilities
• Quality control procedures
• Testing equipment
• Calibration capability

Certification and Compliance

Depending on application requirements, consider:

• Quality management certification
• Explosion-proof certification
• Calibration certificates
• Relevant industry approvals

Technical Support Capability

A reliable supplier should provide:

• Model selection assistance
• Installation guidance
• Technical documentation
• After-sales support

For international buyers, fast communication and engineering support are especially important.

10. Gas Turbine Flow Meter Brand Selection Guide

Instead of simply ranking brands, buyers should select manufacturers based on application requirements, budget, and technical expectations.

High-End International Brands

Suitable for:

• Large natural gas networks
• Custody transfer measurement
• International EPC projects

Typical advantages:

• Strong global reputation
• Mature technology
• Extensive application experience

Limitations:

• Higher investment cost
• Longer delivery cycles in some regions

Examples include:

• Emerson
• KROHNE
• Yokogawa

High-Performance Chinese Manufacturers

Suitable for:

• Industrial gas measurement
• Factory energy monitoring
• Gas distribution projects

Typical advantages:

• Competitive pricing
• Faster customization
• Shorter delivery time
• Good cost-performance ratio

Examples include:

• Aister Instrument
• Tancy
• Chuanyi
• Q&T

11. Gas Turbine Flow Meter vs Other Flow Measurement Technologies

Gas Turbine Flow Meter vs Thermal Mass Flow Meter

Comparison	Gas Turbine Flow Meter	Thermal Mass Flow Meter
Measurement principle	Velocity measurement	Heat transfer measurement
Best for	Clean gases	Various gas applications
Accuracy	High	High
Pressure loss	Low	Very low
Gas cleanliness requirement	Higher	Lower
Common applications	Natural gas, compressed air	Compressed air, process gas

Gas Turbine Flow Meter vs Ultrasonic Flow Meter

Comparison	Gas Turbine Flow Meter	Ultrasonic Flow Meter
Moving parts	Yes	No
Maintenance	Requires bearing consideration	Low maintenance
Installation	Inline installation	Some clamp-on options
Accuracy	High	High
Cost	Usually lower	Usually higher

12. Frequently Asked Questions About Gas Turbine Flow Meters

1. What gases can a gas turbine flow meter measure?

Gas turbine flow meters are commonly used for clean gases such as:

• Natural gas
• Compressed air
• Nitrogen
• Oxygen
• Biogas

The final selection depends on gas composition, pressure, temperature, and cleanliness.

2. Can a gas turbine flow meter measure compressed air?

Yes.

Gas turbine flow meters are widely used for compressed air measurement because they provide good accuracy, repeatability, and low pressure loss.

However, compressed air systems should consider:

• Moisture content
• Oil contamination
• Filter requirements

3. Does a gas turbine flow meter require temperature and pressure compensation?

For industrial process monitoring, compensation depends on accuracy requirements.

For:

• Gas billing
• Energy measurement
• Commercial gas transfer

temperature and pressure compensation is usually required.

4. How long does a gas turbine flow meter last?

Service life depends on:

• Gas cleanliness
• Operating conditions
• Bearing design
• Maintenance

Properly selected and installed meters can provide many years of stable operation.

5. What causes gas turbine flow meter failure?

Common causes include:

• Contaminated gas
• Excessive flow velocity
• Incorrect sizing
• Improper installation
• Bearing wear

6. What information is needed to select a gas turbine flow meter?

Provide:

• Gas type
• Flow range
• Pressure
• Temperature
• Pipe size
• Accuracy requirement
• Communication requirements
• Explosion-proof requirements

13. Need Help Selecting the Right Gas Turbine Flow Meter?

Choosing a gas turbine flow meter is not only about selecting a model number. The correct solution depends on your actual operating conditions, measurement requirements, and application environment.

Aister Instrument provides professional gas flow measurement solutions for applications including:

• Natural gas measurement
• Compressed air monitoring
• Nitrogen measurement
• Industrial gas systems
• Biogas applications

Our engineering team can help you select the appropriate gas turbine flow meter based on:

✔ Gas type
✔ Minimum / normal / maximum flow rate
✔ Operating pressure and temperature
✔ Pipeline size
✔ Accuracy requirements
✔ Communication interface
✔ Explosion-proof requirements

You will receive:

✔ Recommended model selection
✔ Technical datasheet
✔ Installation recommendations
✔ Customized configuration advice
✔ Competitive quotation support

Contact Aister Instrument today and let our engineers help you find the most suitable gas turbine flow meter solution for your application.
