Compressed Air Flow Rate Chart Guide: A Practical Solution for Every Application
2026-04-03
In compressed air systems, flow rate—not just pressure—is the key determinant of performance. Many system inefficiencies, pressure drops, and equipment failures stem from improper sizing of pipelines and air supply. This guide provides a structured, SEO-optimized reference for compressed air flow rate charts, pipe sizing, and real-world selection strategies.

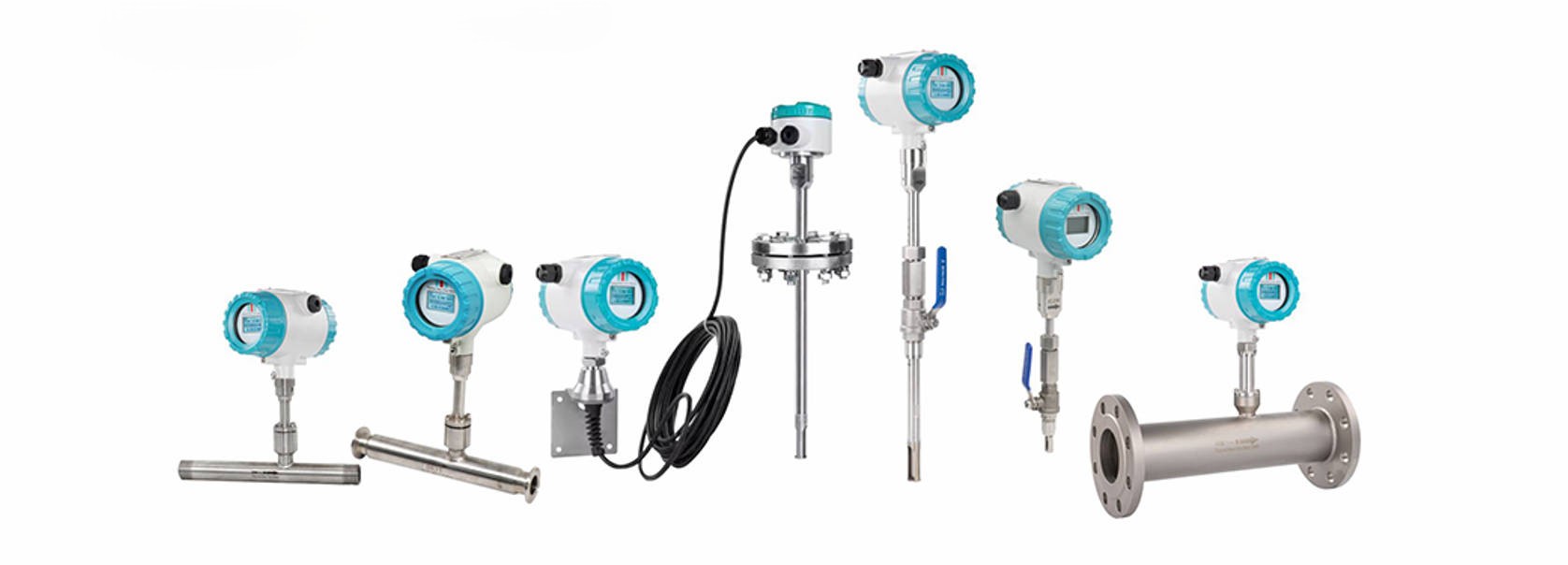

.jpg)
1. Quick Reference: Pipe Diameter vs Flow Rate Chart
The following table is based on 0.7–0.8 MPa working pressure and an economic flow velocity of 10–15 m/s. For long-distance pipelines, use the lower end of the flow range to minimize pressure loss.
| Pipe Size (DN/mm) | Estimated Flow (m³/h) | Recommended Application |
|---|---|---|
| DN15 (1/2”) | 10 – 20 | Branch lines, single pneumatic tool |
| DN20 (3/4”) | 20 – 40 | Short-distance circuits |
| DN25 (1”) | 40 – 70 | Small workshop supply |
| DN32 (1 1/4”) | 70 – 120 | Workstation supply |
| DN40 (1 1/2”) | 120 – 180 | Common branch pipelines |
| DN50 (2”) | 180 – 300 | Workshop main pipeline |
| DN65 (2 1/2”) | 300 – 500 | Plant main supply |
| DN80 (3”) | 500 – 800 | High-flow trunk lines |
| DN100 (4”) | 800 – 1200 | Long-distance / large factory mains |
Key Insight:
Choosing a slightly larger pipe diameter reduces pressure drop and improves system efficiency, especially in long pipelines.
2. Advanced Selection: Pressure vs Flow Velocity
Flow velocity should be adjusted according to system pressure to balance energy efficiency and pressure loss.
| Working Pressure (MPa) | Recommended Velocity (m/s) | Selection Strategy |
|---|---|---|
| 0.3 – 0.6 (Low) | 10 – 20 | Use smaller pipes to reduce cost |
| 0.6 – 1.0 (Standard) | 10 – 15 | Optimal economic range |
| 1.0 – 2.0 (High) | 8 – 12 | Increase pipe size to reduce loss |
| 2.0 – 3.0 (Ultra-high) | 3 – 6 | Prioritize safety and stability |
Engineering Tip:
Higher pressure does NOT mean higher velocity. Excessive velocity increases turbulence, causing energy loss and unstable flow measurement.
3. Practical Selection: 3-Step Configuration Method
Step 1: Determine Air Consumption
Many users focus only on pressure (e.g., 0.7 MPa) and ignore flow rate—this is a critical mistake.
Example:
- Tool requirement: 1.0 m³/min
- Intermittent use → Compressor ≥ 1.2 m³/min
- Continuous use → Compressor ≥ 1.5 m³/min
Rule of Thumb:
- Add 20% margin for intermittent loads
- Add 50% margin for continuous operation
Step 2: Select the Air Receiver Tank
The air receiver stabilizes pressure fluctuations and reduces compressor cycling.
Sizing Rule:
- Tank volume = 20%–30% of compressor flow rate
Example:
- Compressor: 1 m³/min
- Tank size: 200–300 liters
Why it matters:
- Reduces pressure fluctuation
- Improves system efficiency
- Extends compressor lifespan
Step 3: Match the Pipeline System
Ensure pipe diameter matches total system demand:
| Application Scenario | Recommended Pipe Size | Compressor Flow | Tank Size |
|---|---|---|---|
| Small workshop (1–2 users) | DN20–DN25 | 0.5–1.0 m³/min | 200–300 L |
| Small factory (3–5 tools) | DN32–DN40 | 2.0–3.0 m³/min | 500–800 L |
| Production line | DN50–DN80 | 6.0–10 m³/min | 1.5–3.0 m³ |
| Large industrial system | DN100+ | Custom | Proportional |
4. Installation Best Practices (Often Overlooked)
Even with correct sizing, poor installation can significantly reduce actual flow performance.
- Install pipelines with a 1–2° slope in airflow direction
- Add drain valves at low points
- Avoid excessive bends and restrictions
- Ensure proper sealing to prevent leaks
Hidden Risk:
Condensate accumulation can reduce effective flow area and lead to measurement errors and system inefficiency.
Conclusion
A well-designed compressed air system is not just about selecting a compressor—it requires a balanced approach to flow rate, pipe sizing, pressure, and storage capacity. By using standardized flow charts and applying practical engineering rules, you can significantly improve system efficiency, stability, and operational lifespan.
If you need professional advice or product recommendations, feel free to contact us anytime.
