Choosing the right flowmeter is not just a technical decision—it directly impacts measurement accuracy, energy efficiency, and long-term operating costs. Among various options, the thermal mass flow meter stands out in gas measurement applications. But how does it compare with differential pressure and vortex flowmeters?
This guide breaks down the performance and lifecycle cost differences to help you make a data-driven decision.
What Makes Thermal Mass Flow Meters Unique?
.jpg)

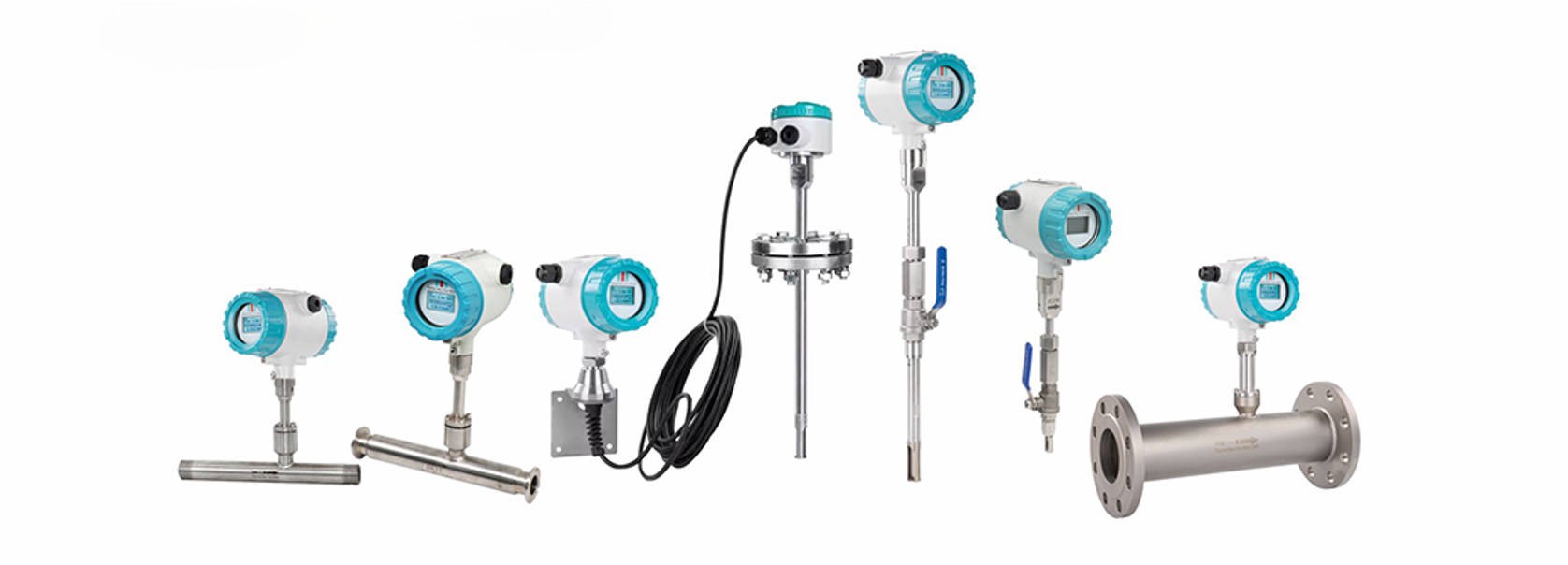

Thermal mass flow meters operate based on heat transfer (thermal dispersion), directly measuring mass flow rate rather than volumetric flow.
Key Advantages:
- Direct mass flow output (no temperature or pressure compensation required)
- Extremely wide turndown ratio (up to 1000:1)
- Near-zero pressure loss
- Excellent low-flow sensitivity (ideal for leak detection)
- Low maintenance (no moving parts)
Limitations:
- Only suitable for clean, dry gases
- Performance may degrade in dirty, wet, or corrosive environments
- Higher upfront cost compared to basic technologies
Performance Comparison: Thermal vs Differential Pressure vs Vortex
1. Measurement Principle & Output
| Parameter | Thermal Mass Flow Meter | Differential Pressure (Orifice / V-cone) | Vortex Flow Meter |
|---|---|---|---|
| Principle | Thermal dispersion (mass flow) | Pressure drop (volumetric flow) | Kármán vortex shedding |
| Output | Direct mass flow | Requires T/P compensation | Requires density compensation |
| Media | Clean gases only | Gas, liquid, steam | Gas, liquid, steam |
Insight: Thermal flowmeters simplify system design by eliminating compensation instruments.
2. Rangeability & Accuracy
| Parameter | Thermal | Differential Pressure | Vortex |
|---|---|---|---|
| Turndown Ratio | 100:1 to 1000:1 | 3:1 to 10:1 | 10:1 to 30:1 |
| Accuracy | ±0.5%–1.5% FS | ±1%–3% FS | ±0.5%–1.5% FS |
| Low Flow Capability | Excellent | Poor | Limited |
Insight: Thermal meters dominate in low-flow and wide-range applications, such as compressed air systems.
3. Pressure Loss & Energy Efficiency
| Parameter | Thermal | Differential Pressure | Vortex |
|---|---|---|---|
| Pressure Loss | Negligible | High (permanent loss) | Medium |
| Energy Impact | Low long-term cost | Increased pump/fan energy | Moderate |
Insight: In large pipelines, pressure loss translates directly into energy cost—a critical advantage for thermal meters.
4. Installation & Maintenance
| Parameter | Thermal | Differential Pressure | Vortex |
|---|---|---|---|
| Straight Pipe Requirement | Low (≈3D upstream) | High (≈20D upstream) | Medium |
| Vibration Sensitivity | Low | Medium | High |
| Maintenance | Low (probe cleaning) | High (orifice wear/clogging) | Low |
| Lifespan | Long | Medium | Long |
Insight: Thermal meters reduce both installation complexity and maintenance workload.
Lifecycle Cost (3–5 Years)
Thermal Mass Flow Meter → Lowest Total Cost
- No need for temperature/pressure compensation systems
- Minimal maintenance
- Significant energy savings from zero pressure drop
Differential Pressure → Highest Total Cost
- Additional transmitters for compensation
- Frequent calibration and component replacement
- High energy consumption due to permanent pressure loss
Vortex Flow Meter → Moderate Cost
- Requires compensation
- Sensitive to vibration
- Potential measurement gaps at low flow
Best Application Scenarios
Choose Thermal Mass Flow Meters When:
- Measuring compressed air, nitrogen, natural gas
- Need energy monitoring or leak detection
- Flow varies significantly (wide turndown required)
- System efficiency and long-term cost matter
Avoid Thermal Meters When:
- Measuring steam
- Handling dirty, wet, or particulate-laden gases
- Operating under extreme temperature/pressure conditions
Final Verdict: Is Thermal Worth It?
Thermal mass flow meters are best described as a “high-efficiency specialist for gas measurement.” While the upfront investment is higher, they deliver:
- Simpler system architecture
- Lower lifecycle costs
- Superior performance in gas applications
- Strong energy-saving potential
For industries focused on energy management, compressed air systems, and gas flow monitoring, thermal mass flow meters often provide the best return on investment compared to traditional technologies.
If you need professional advice or product recommendations, feel free to contact us anytime.
