How to Choose a Steam Flow Meter? Key Differences Between Saturated and Superheated Steam

Choosing the right steam flow meter starts with one fundamental question: Are you measuring saturated steam or superheated steam?

Although both are forms of steam, their physical properties, density behavior, and measurement challenges are significantly different. These differences directly affect the choice of flow measurement principle, compensation method, materials, and installation requirements.

For industrial buyers, identifying the steam condition before selecting a flow meter can help avoid common problems such as inaccurate readings, unstable signals, excessive pressure loss, and premature instrument failure.

1. Key Differences Between Saturated Steam and Superheated Steam

The key takeaway:

For saturated steam, the main challenge is condensate and wet steam.

For superheated steam, the main challenges are high temperature and accurate temperature-pressure compensation.

This distinction should be made before comparing flow meter technologies or manufacturers.

2. Step-by-Step Steam Flow Meter Selection Guide

Step 1: Confirm the Steam Type and Operating Conditions

Before selecting a steam flow meter, collect the following process information:

• Steam type: saturated or superheated steam
• Operating pressure range (MPa or bar)
• Operating temperature range (°C)
• For saturated steam: steam quality/dryness and whether condensate is frequently present
• For superheated steam: degree of superheat and its normal operating range

These parameters are the foundation for determining the appropriate flow meter technology and compensation method.

If the steam condition is not clearly defined, selecting a flow meter based only on pipe diameter can easily result in an unsuitable measurement solution.

Step 2: Determine the Flow Range

The flow meter should be sized according to the actual operating flow range rather than simply matching the nominal pipe size.

You should provide:

• Minimum flow rate
• Normal/typical flow rate
• Maximum flow rate
• Expected flow fluctuations
• Low-load operating conditions

Pay particular attention to whether the actual minimum flow falls below the lower measurement limit of the flow meter.

This is especially important for vortex flow meters, because extremely low flow velocities may result in unstable vortex signals and reduced measurement reliability.

If the steam flow varies considerably throughout the day, choose a flow meter with a sufficiently wide turndown ratio.

Step 3: Select the Appropriate Measurement Principle

Different steam flow meter technologies have different strengths depending on the steam condition and installation environment.

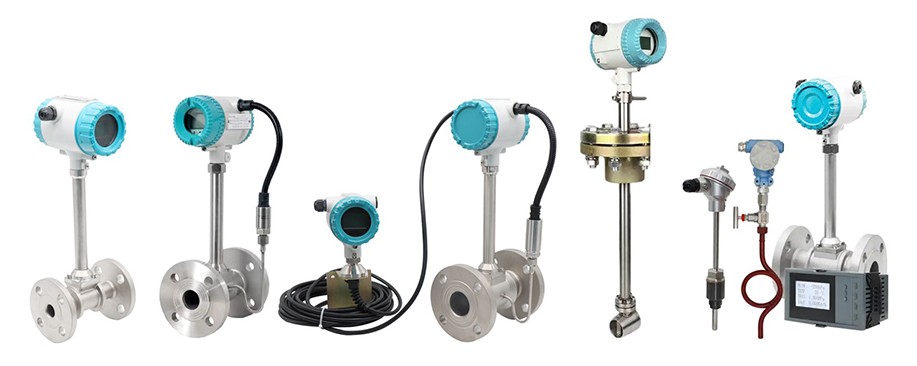

Vortex Flow Meter: A Practical Choice for Many Steam Applications

Vortex flow meters are widely used for steam measurement because they have no moving mechanical parts and can measure both saturated and superheated steam.

For saturated steam, however, proper condensate drainage is essential. Wet steam can negatively affect measurement stability and accuracy.

For superheated steam, the flow meter should be designed for the actual operating temperature, and appropriate temperature and pressure compensation should be provided when mass flow measurement is required.

Orifice Flow Meter: Suitable for Stable High-Pressure Applications

Orifice flow meters are a traditional differential-pressure measurement solution for steam.

They can handle high-temperature and high-pressure applications when properly specified. However, the installation typically requires sufficient straight pipe length, impulse piping, and differential-pressure instrumentation.

They can be a good option where standardized differential-pressure measurement is preferred.

V-Cone Flow Meter: Useful When Installation Conditions Are Difficult

V-Cone flow meters can be considered when the available straight pipe length is limited or when the process conditions are relatively demanding.

Their flow-conditioning effect can reduce the straight-pipe requirements compared with some conventional differential-pressure installations, making them worth considering for compact or challenging piping layouts.

3. Temperature and Pressure Compensation

Steam density is strongly dependent on pressure and temperature. Therefore, compensation is one of the most important considerations when measuring steam mass flow.

Saturated Steam

For saturated steam, temperature and pressure are thermodynamically related under ideal saturation conditions. Therefore, pressure compensation can often be used to determine steam density.

However, relying on a single pressure measurement may not always be the most robust approach in practical industrial installations.

An integrated temperature-pressure compensation configuration can provide additional verification and improve the reliability of the measurement system.

Superheated Steam

For superheated steam, temperature and pressure are independent process variables.

Therefore, both temperature and pressure compensation are required when calculating mass flow accurately.

A practical configuration is an integrated steam flow meter system with temperature and pressure compensation, allowing the instrument to calculate and output compensated mass flow directly.

This can simplify installation and reduce potential measurement errors associated with separate instruments.

Because steam density changes with operating conditions, the flow meter should not be selected solely according to volumetric flow rate. The actual pressure and temperature range must be considered when determining the measurement range and compensation strategy.

4. Material Selection and Temperature/Pressure Rating

Material selection becomes particularly important in high-temperature steam applications.

For superheated steam, the following components should be checked carefully:

• Flow sensor and wetted parts
• Meter body
• Flanges
• Gaskets and seals
• Sensor insulation
• Converter/electronics housing
• Temperature and pressure transmitters

All components should be rated for the actual continuous operating temperature, rather than only the maximum short-term temperature.

For applications below approximately 350°C, conventional stainless-steel constructions may be suitable depending on the specific flow meter design and pressure rating.

For higher-temperature applications, specialized materials or high-temperature configurations may be required.

The pressure rating of the flow meter and connected components should also exceed the maximum expected operating pressure, with an appropriate engineering safety margin.

5. Explosion Protection and Enclosure Protection

Steam systems are commonly found in boiler rooms, power plants, process plants, and other industrial environments.

If the installation area is classified as hazardous, confirm the required explosion-proof certification before purchasing the flow meter.

Depending on the region and project requirements, specifications may include:

• Explosion-proof certification
• Gas group
• Temperature class
• Enclosure protection rating
• IP65 or IP67 protection

For example, an application may require an explosion-proof specification such as Ex d IIC T6, but the actual certification requirement should always be determined according to the hazardous-area classification and applicable local standards.

6. Output Signals and Communication

The communication interface should also be considered before purchasing a steam flow meter, particularly when the meter needs to be integrated into a PLC, DCS, SCADA, or energy management system.

Common options include:

• 4–20 mA
• Pulse output
• RS485 / Modbus RTU
• HART

For steam energy management or commercial/utility metering, totalized flow output is particularly important.

The flow meter should be capable of providing reliable cumulative flow data and, where required, remote data transmission for centralized monitoring.

7. Straight Pipe Requirements and Installation Position

Installation conditions can have a significant impact on steam flow measurement accuracy.

Vortex Flow Meter

A typical installation may require approximately:

• 10D–15D upstream
• 5D downstream

The exact requirement depends on the flow meter design and the upstream piping configuration.

The meter should be installed away from strong vibration sources, valves that generate severe turbulence, pumps, compressors, and other sources of flow disturbance whenever possible.

Orifice Flow Meter

Orifice flow meters generally have more demanding straight-pipe requirements.

Depending on the upstream disturbance and applicable installation standard, the required upstream straight pipe may be approximately 10D–30D or more.

The manufacturer's installation instructions and the relevant standard should always take precedence over a generic straight-pipe guideline.

Condensate Drainage Is Critical

For steam pipelines, proper condensate drainage is essential.

Drainage points and steam traps should be installed appropriately to prevent condensate from accumulating upstream of the flow meter.

This is especially important for saturated steam because liquid water can create two-phase flow and significantly affect measurement performance.

8. Saturated Steam vs. Superheated Steam: Selection Summary

The best choice ultimately depends on the actual operating conditions rather than simply the steam type.

9. Steam Flow Meter Commissioning and Acceptance Checklist

Selecting the correct flow meter is only part of the process. Proper commissioning and acceptance are equally important.

1. Check the Condensate Drainage System

During pipeline warm-up, open the appropriate bypass and drainage system to remove accumulated condensate.

This helps prevent water hammer and sudden condensate impact on the flow meter.

The flow meter should not be exposed to severe condensate slugs during startup.

2. Check Zero and Signal Stability

When the system is shut down, check whether the flow meter returns to an appropriate zero reading.

During normal operation, monitor the output signal for:

• Sudden fluctuations
• Unstable readings
• Unexpected signal jumps
• Abnormal totalized flow

Stable operating signals provide an important indication that the installation and measurement conditions are appropriate.

3. Perform Comparison Testing

Where practical, compare the steam flow meter against a reference measurement device or suitable portable measurement equipment.

Testing should cover:

• Low flow
• Normal/medium flow
• High flow

Testing at multiple operating points provides a better indication of the meter's performance across its actual operating range.

4. Verify Temperature and Pressure Compensation

Change the operating load within a controlled range and observe whether the compensated flow output changes consistently with the actual steam consumption.

This is particularly important for superheated steam applications where both temperature and pressure directly affect density calculations.

5. Check Totalized Flow

For critical metering applications, monitor the cumulative flow over an extended period.

For example, a 7-day comparison can be made between the flow meter's totalized steam consumption and a reliable reference, such as boiler steam production or another calibrated measurement system.

An energy balance can help identify systematic measurement deviations that may not be obvious from short-term readings.

10. Final Conclusion: How to Choose the Right Steam Flow Meter?

Choosing a steam flow meter should never be based solely on pipe diameter, price, or brand.

The selection process should begin with the steam condition and then consider:

• Saturated or superheated steam
• Operating pressure
• Operating temperature
• Minimum, normal, and maximum flow
• Steam quality and condensate conditions
• Required accuracy
• Temperature and pressure compensation
• Flow meter material and temperature rating
• Straight pipe availability
• Explosion-proof requirements
• Communication interfaces
• Totalized flow and system integration

For saturated steam, the primary concern is condensate and wet steam. A vortex flow meter with appropriate compensation can be a practical solution, provided that the steam line has an effective condensate drainage system.

For superheated steam, the focus shifts to high-temperature resistance and accurate two-parameter compensation. A high-temperature vortex flow meter, or an orifice/V-Cone system with suitable temperature and pressure measurement, can be considered depending on the process conditions.

In short: identify the steam condition first, then select the measurement principle based on the actual pressure, temperature, flow range, and installation environment.

A properly selected and installed steam flow meter can provide more stable measurement, more reliable mass-flow data, and better long-term performance in industrial steam systems.
