Compressed air is one of the most expensive energy sources in industrial facilities. Accurate measurement is essential for energy management, leak detection, cost allocation, and system optimization. However, traditional flow measurement technologies often struggle with pressure fluctuations, low-flow sensitivity, and high maintenance requirements.

The thermal mass flow meter has emerged as the preferred solution for compressed air systems because it directly measures mass flow, requires no temperature or pressure compensation, and provides exceptional sensitivity across a wide flow range. This article explains its working principle, key advantages, and why it is considered the ultimate tool for compressed air measurement.

How Thermal Mass Flow Meters Work

Heat Transfer Principle: Measuring Flow Through Cooling Effect

Thermal mass flow meters operate based on the thermal dispersion principle. When gas flows across a heated sensor, it carries away heat. The greater the gas flow, the more heat is dissipated.

This relationship between heat loss and gas flow allows the instrument to determine the mass flow rate directly and accurately.

Constant Temperature Difference Measurement Method

Most modern thermal flow meters use a constant temperature difference (CTD) method. The probe typically contains two precision temperature sensors:

• Heated sensor: Maintained at a constant temperature above the gas temperature (for example, 50°C higher)

• Reference sensor: Measures the actual gas temperature

When gas flows past the probe:

• Faster gas flow removes more heat

• The instrument automatically increases heating power to maintain the temperature difference

• The required heating power is directly proportional to the gas mass flow rate

In simple terms:

Higher flow velocity → greater heat loss → higher heating power → higher mass flow rate

This direct relationship enables precise and reliable mass flow measurement.

Key Advantages of Thermal Mass Flow Meters for Compressed Air

Thermal mass flow meters offer several critical advantages compared to vortex, differential pressure, and ultrasonic flow meters.

1. Direct Mass Flow Measurement Without Temperature or Pressure Compensation

This is the most significant advantage.

Compressed air volume varies significantly with changes in temperature and pressure. However, energy consumption and cost calculations require mass flow or standardized flow measurement.

Other flow meter technologies:

• Measure volumetric flow only

• Require additional pressure and temperature sensors

• Increase system complexity and potential error sources

Thermal mass flow meters:

• Directly measure mass flow

• Do not require external compensation

• Provide simpler system architecture and higher accuracy

This makes them ideal for energy monitoring and compressed air system management.

2. Extremely Low Pressure Loss

Pressure loss in compressed air systems directly translates into higher energy consumption and increased operating costs.

Thermal mass flow meters use a small insertion probe that minimally obstructs the airflow. As a result:

• Pressure loss is negligible

• Compressor efficiency is preserved

• No additional energy consumption is introduced

This makes them highly energy-efficient measurement devices.

3. Wide Turndown Ratio and Exceptional Low-Flow Sensitivity

Compressed air demand fluctuates significantly in industrial environments:

• High consumption during production hours

• Low consumption during idle periods

• Continuous small leaks throughout the system

Thermal mass flow meters offer a wide turndown ratio, typically ranging from 1:100 to 1:1000, allowing them to:

• Measure high flow during peak operation

• Detect extremely low flow rates

• Identify compressed air leaks early

This capability makes them essential tools for energy audits and leak detection programs.

4. No Moving Parts and Minimal Maintenance

Thermal mass flow meters feature solid-state sensor construction with no mechanical moving parts.

This design provides several benefits:

• No mechanical wear

• No clogging or blockage

• Long-term stability

• Reduced maintenance requirements

• Lower total cost of ownership

Once installed, they can operate reliably for many years with minimal servicing.

Typical Applications of Thermal Mass Flow Meters

Thermal mass flow meters are widely used in compressed air systems across many industries, including:

• Manufacturing plants

• Automotive production

• Electronics manufacturing

• Food and beverage processing

• Pharmaceutical production

• Power generation facilities

• Energy management systems

• Leak detection and compressed air audits

They are suitable for both main pipelines and branch lines.

Why Thermal Mass Flow Meters Are Ideal for Energy Efficiency Programs

Compressed air systems often account for 10–30% of total industrial energy consumption. Accurate flow measurement is critical for improving efficiency.

Thermal mass flow meters enable:

• Accurate energy consumption monitoring

• Leak detection and prevention

• Optimization of compressor performance

• Fair internal cost allocation

• Long-term energy savings

This makes them essential components of modern industrial energy management systems.

Installation Advantages

Thermal mass flow meters are easy to install and integrate into existing systems.

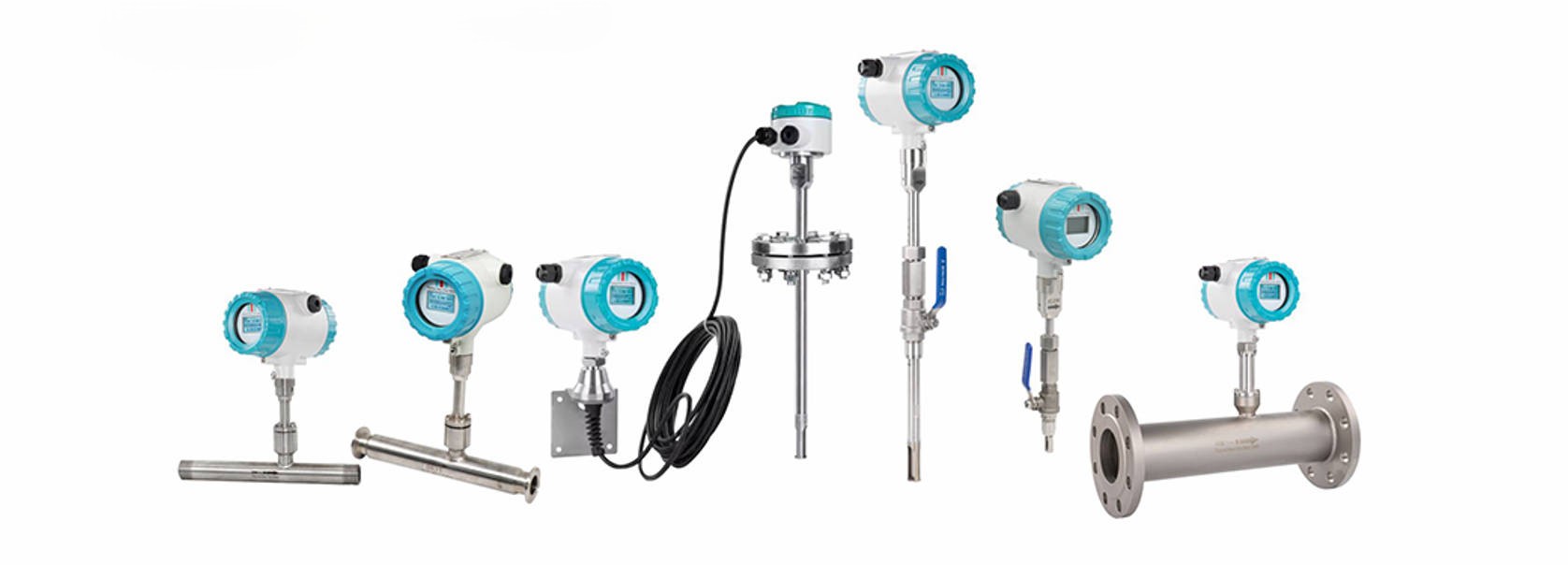

Common installation types include:

• Insertion type for large pipelines

• Inline type for smaller pipe diameters

Installation benefits include:

• No need to shut down the entire system (for hot tapping insertion types)

• Minimal pipe modification

• Fast commissioning

• Low installation cost

Conclusion: The Best Choice for Compressed Air Flow Measurement

Thermal mass flow meters provide unmatched advantages for compressed air measurement, including direct mass flow measurement, negligible pressure loss, wide turndown ratio, and excellent long-term stability. Their ability to measure both high and extremely low flow rates makes them ideal for energy monitoring, leak detection, and system optimization.

For industries seeking accurate, reliable, and energy-efficient compressed air flow measurement, thermal mass flow meters are widely recognized as the ultimate and most effective solution.

If you need professional advice or product recommendations, feel free to contact us anytime.
