Compressed Air Flow Meter Selection Guide: Types, Applications & Common Mistakes to Avoid

Compressed air is a core industrial energy source. Measurement accuracy directly affects energy management, cost accounting, and process stability.

This guide systematically explains mainstream compressed air flow meter technologies, compares their characteristics, and provides practical selection strategies to help engineers and procurement managers choose the most suitable solution.

1. Key Parameters Before Selecting a Compressed Air Flow Meter

Accurate selection starts with defining technical conditions. Avoid choosing instruments based on pipe size alone.

1.1 Medium Characteristics

• Air cleanliness (oil mist, dust, condensate)

• Corrosiveness

• Moisture content

These factors determine the required anti-fouling capability, sensor protection level, and material compatibility.

1.2 Operating Conditions

• Working pressure: typically 0.1–16 MPa

• Temperature: ambient to 420°C

• Flow range and fluctuation

• Measurement type: mass flow or volumetric flow

1.3 Measurement Accuracy Requirements

Different applications require different accuracy levels:

1.4 Additional Considerations

• Pipe diameter (DN size)

• Installation space

• Straight pipe length

• Signal output (4–20mA, pulse, RS485, Modbus)

• Budget and maintenance expectations

2. Main Types of Compressed Air Flow Meters

Industrial compressed air measurement typically uses four categories of flow meters.

2.1 Mass Flow Meters (High-Precision Solution)

Mass flow meters directly measure mass flow without external temperature and pressure compensation.

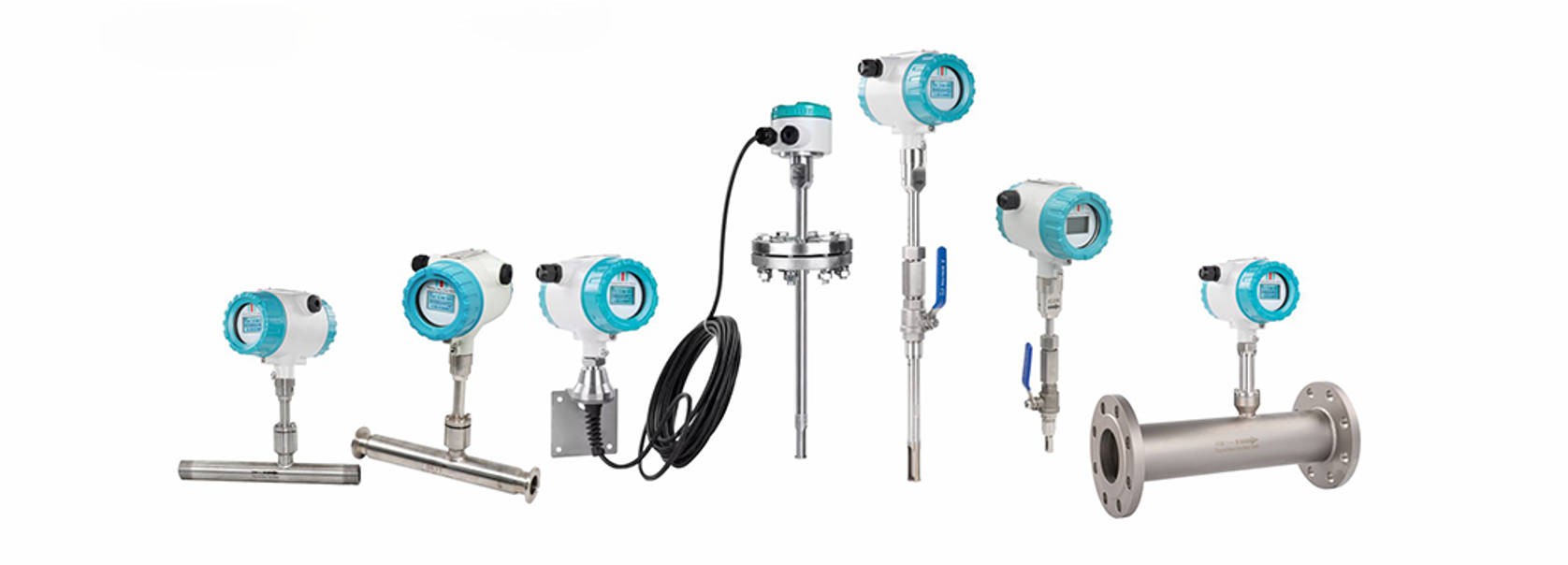

A. Thermal Mass Flow Meters

Example technology: Thermal Mass Flow Meter

Advantages:

• Wide turndown ratio (1:100 to 1:200)

• Detects low flow velocity (≥0.5 m/s)

• Minimal pressure loss

• Flexible installation (insertion or inline)

• Accuracy: ±1.0%R to ±2.0%R

Limitations:

• Sensitive to oil and dust contamination

• Requires filtration in polluted air systems

Best for:

• Energy management systems

• Factory compressed air monitoring

• Leakage detection

B. Coriolis Mass Flow Meters

Example technology: Coriolis Flow Meter

Advantages:

• Extremely high accuracy (±0.1%R to ±0.5%R)

• Independent of pressure, temperature, and density

• Suitable for precision measurement

Limitations:

• 3–5 times more expensive than thermal meters

• Higher pressure drop

• Sensitive to vibration

Best for:

• High-end precision applications

• Specialized industrial processes

2.2 Velocity Flow Meters (Cost-Effective Option)

Velocity meters measure flow velocity and calculate volumetric flow. Temperature and pressure compensation is required.

A. Vortex Flow Meters

Example technology: Vortex Flow Meter

Advantages:

• No moving mechanical parts

• Withstands high pressure (up to 16 MPa)

• Handles high temperature (up to 420°C)

• DN25–DN300

• Turndown ratio: 1:10 to 1:20

Limitations:

• Sensitive to vibration

• Accuracy decreases below 5 m/s

Best for:

• Industrial process monitoring

• Medium pipe diameters

B. Ultrasonic Flow Meters

Example technology: Ultrasonic Flow Meter

Advantages:

• No pressure loss

• Large diameter capability (DN50–DN2000)

• Insertion type allows hot tapping installation

• Turndown ratio: 1:20 to 1:30

Limitations:

• Requires long straight pipe (upstream ≥20DN)

• Suitable only for clean compressed air

Best for:

• Large pipelines

• Retrofit projects

• Situations where shutdown is impossible

2.3 Differential Pressure Flow Meters (Traditional Method)

Common types include:

• Orifice Plate Flow Meter

• Venturi Flow Meter

Advantages:

• Standardized and widely accepted

• Suitable for large pipe diameters

• Lower initial cost

Limitations:

• Significant pressure loss (especially orifice plate)

• Requires temperature and pressure compensation

• Prone to clogging in dirty air systems

Best for:

• Large pipelines

• Low precision industrial monitoring

2.4 Variable Area (Rotameter) Flow Meters

Example technology: Metal Tube Rotameter

Advantages:

• Simple structure

• Very low cost

• Direct visual indication

Limitations:

• Low accuracy (±4%R to ±5%R)

• Limited to small pipe sizes (DN15–DN80)

• Not suitable for high pressure

Best for:

• Simple monitoring

• Laboratory or auxiliary lines

3. Recommended Selection by Application Scenario

3.1 Custody Transfer or High-Accuracy Energy Accounting

• Preferred: Inline thermal mass flow meter

• Premium option: Coriolis flow meter

• Ensure clean air and periodic calibration (6–12 months)

3.2 General Industrial Process Monitoring

• DN25–DN300: Vortex flow meter

• DN15–DN100: Thermal mass flow meter

• DN300+: Insertion ultrasonic or insertion thermal flow meter

3.3 Special Working Conditions

High oil or dust content

• Ultrasonic or anti-fouling vortex meter

• Install filtration systems

High pressure (≥1.6 MPa)

• High-pressure vortex or Venturi meter

Low flow or pulsating flow

• Thermal mass flow meter preferred

Old pipeline retrofitting

• Insertion-type ultrasonic or thermal flow meter

3.4 Simple Monitoring

• Metal tube rotameter

• Avoid high-pressure and high-flow applications

4. Common Mistakes in Compressed Air Flow Meter Selection

Mistake 1: Overemphasizing accuracy
Ultra-high accuracy is unnecessary for non-trade applications. Focus on total cost of ownership.

Mistake 2: Selecting by pipe size only
Verify flow velocity. Ensure normal flow falls within 20%–80% of meter range.

Mistake 3: Ignoring temperature and pressure compensation
Except for mass flow meters and simple monitoring, compensation is mandatory.

Mistake 4: Overlooking air cleanliness
Contaminated systems require anti-fouling design and filtration.

Mistake 5: Neglecting installation conditions
Consider vibration, straight pipe requirements, and maintenance access.

5. Final Selection Strategy and Implementation Advice

The core principle of compressed air flow meter selection is:

Match operating conditions first, align accuracy with application needs, and optimize long-term cost performance.

Practical Three-Step Approach

1. Define operating parameters and measurement objectives

2. Match the appropriate technology type

3. Verify installation feasibility and maintenance requirements

Whenever possible, choose digital communication-enabled models (Modbus, RS485) to integrate with energy management systems and enable data-driven optimization.

Conclusion

Selecting the right compressed air flow meter is not about choosing the most expensive or the most precise instrument. It is about selecting a technology that fits your operating conditions, accuracy requirements, and lifecycle budget.

A well-matched flow meter improves energy efficiency, stabilizes processes, reduces operational risk, and provides reliable data for industrial cost control.

If you need professional advice or product recommendations, feel free to contact us anytime.
