Hygienic Electromagnetic Flow Meters in Dairy Processing: Applications and Maintenance Best Practices

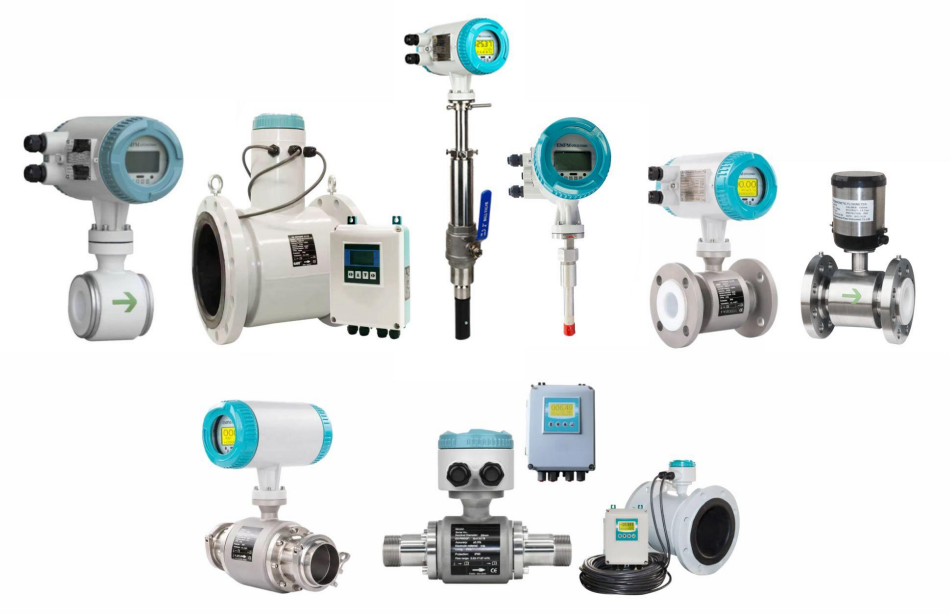

Hygienic electromagnetic flow meters play a critical role in modern dairy processing plants. Thanks to their high accuracy, full-bore design, and sanitary construction, they are widely used in CIP systems, ingredient dosing, product transfer, and heat treatment processes.

This article explains where hygienic electromagnetic flow meters are used in dairy production, how to select the right model, and the best maintenance practices to ensure long-term accuracy, food safety, and operational reliability.

1. Applications of Hygienic Electromagnetic Flow Meters in Dairy Production

1.1 CIP (Clean-In-Place) Systems

In dairy plants, CIP cleaning effectiveness must be measurable and verifiable.

Key functions:

• Accurate measurement of cleaning liquids (alkali, acid, hot water)

• Control of flow rate, total volume, and circulation time

• Validation of cleaning procedures while reducing water and chemical consumption

Why electromagnetic flow meters are ideal:

• No moving parts and minimal pressure loss

• Excellent corrosion resistance with proper liner and electrode selection

• Reliable measurement of conductive CIP fluids, even with residues

1.2 Ingredient Dosing and Standardization

Precise formulation is essential for product consistency in milk, yogurt, and flavored dairy products.

Typical applications:

• Measurement of raw milk, cream, skim milk, sugar syrup, vitamins, and additives

• Batch control in mixing and blending tanks

Advantages:

• High accuracy (typically ±0.5% or better)

• Fast response time for dynamic dosing

• Stable performance across production batches

1.3 Product Transfer and Filling Processes

During transfer from storage tanks to filling machines, flow measurement ensures efficiency and traceability.

Functions:

• Monitoring total batch volume

• Controlling filling line efficiency

• Preventing dosing or packaging errors

Key benefits:

• Full-bore design avoids product damage (important for yogurt with fruit particles)

• Minimal pressure loss

• Hygienic connections such as Tri-Clamp for easy installation and cleaning

1.4 Pasteurization and UHT Processing

Flow measurement is critical in thermal treatment processes to meet regulatory requirements.

Applications:

• Measuring flow before and after plate or tubular heat exchangers

• Working together with temperature sensors to ensure proper holding time and F₀ value

Technical requirements:

• Ability to withstand high temperatures (e.g., short-term exposure above 140°C in UHT)

• Matching thermal expansion between electrodes and liners for long-term stability

2. Key Selection Criteria for Hygienic Electromagnetic Flow Meters

Correct selection directly impacts maintenance effort and service life.

2.1 Liner Materials

• PTFE / PFA: High temperature resistance, excellent chemical compatibility, non-stick surface, ideal for CIP and UHT

• Rubber: Cost-effective for low-temperature and mildly abrasive applications

2.2 Electrode Materials

• 316L Stainless Steel: Standard choice for most dairy products and CIP fluids

• Hastelloy C: Suitable for aggressive cleaning chemicals with high chloride content

• Platinum-Iridium: Highest hygienic grade, outstanding corrosion resistance for aseptic processes

2.3 Protection and Certification

• Enclosure rating: Minimum IP67; CIP zones recommended IP68 or IP69K

• Hygienic approvals: 3-A, EHEDG

• Food contact compliance: FDA, EC 1935/2004

3. Essential Maintenance Best Practices

The main maintenance goals are measurement accuracy, hygienic safety, and extended service life.

3.1 Routine Operation and Inspection

Zero-point verification

• Perform regularly with a completely filled and static conductive fluid (water or product)

• A key indicator of electrode contamination or liner buildup

Visual inspection

• Check liner for wear, blistering, or cracks

• Inspect electrodes for contamination or deformation

• Verify gasket condition on sanitary clamps

Operating range

• Keep normal flow between 20% and 80% of full scale

• Avoid long-term operation at very low flow rates or overload conditions

3.2 Cleaning and CIP Compatibility

Hygienic electromagnetic flow meters are designed to withstand full CIP cycles.

Maintenance focus:

• Verify that CIP procedures effectively clean the meter interior

• Periodic planned disassembly (not only during failures)

Manual cleaning guidelines:

• Use soft cloths and non-abrasive cleaning agents

• Never use metal brushes or sharp tools that could damage liners or electrodes

3.3 Troubleshooting Common Issues

Unstable or fluctuating readings

• Possible causes: partially filled pipe, air bubbles, fat or protein buildup on electrodes

• Solutions: improve installation position, ensure sufficient back pressure, clean electrodes, recalibrate zero

Large measurement deviation

• Causes: liner scaling, electrode contamination, poor grounding

• Solutions: inspect internal surfaces and ensure proper grounding rings or grounding electrodes

No signal output

• Causes: cable damage, power supply failure, sensor fault

• Solutions: check wiring, fuses, and test the transmitter using a signal simulator

3.4 Preventive Maintenance Strategy

• Establish maintenance schedules based on process severity (high sugar or high-temperature products require more frequent checks)

• Keep spare parts available: gaskets, grounding rings, and critical components

• Record zero values, calibration data, and cleaning history to track performance trends

• Perform professional wet calibration every 1–2 years when high accuracy is required

4. Special Considerations for Dairy Applications

• Empty pipe detection: Prevents false readings and protects electrodes

• Electrical isolation: Ensure safe signal transmission during high-pressure CIP cleaning

• Operator training: Personnel should understand correct handling, wiring rules, and hygienic disassembly procedures

Conclusion

Hygienic electromagnetic flow meters are indispensable instruments in dairy processing, supporting accurate measurement, consistent product quality, and strict hygienic compliance. By selecting the right materials, installing the meter correctly, and following a structured maintenance program, dairy producers can significantly reduce downtime, extend equipment lifespan, and meet food safety regulations with confidence.
