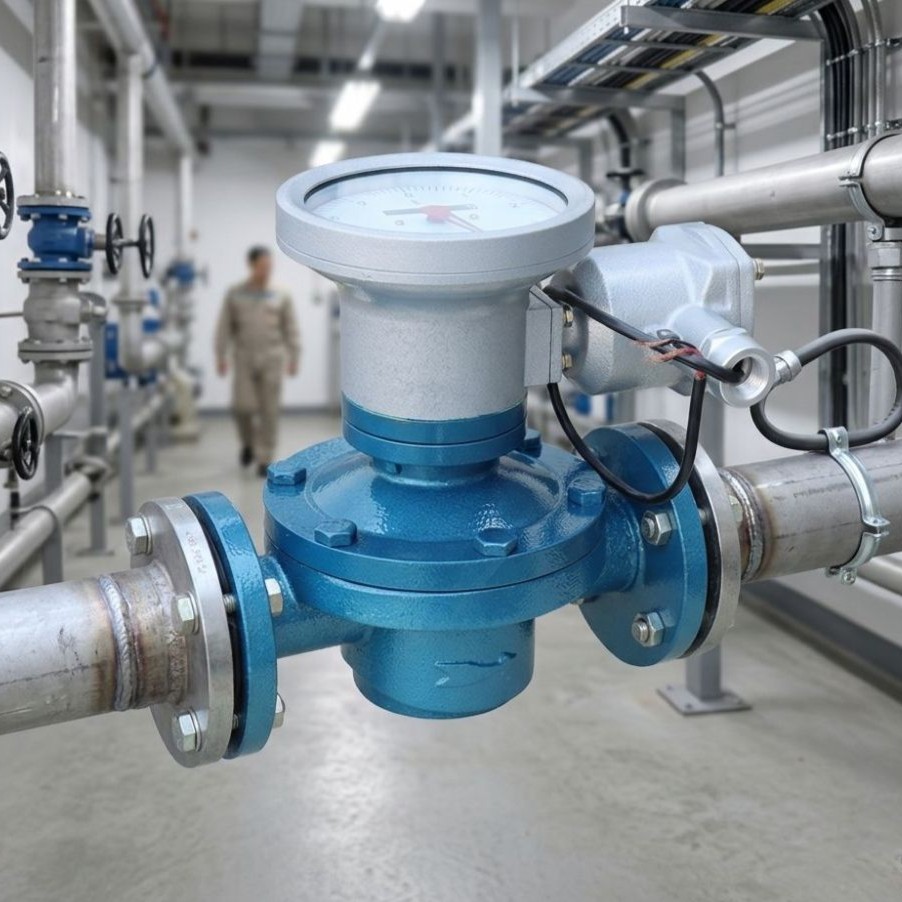

A round gear flow meter is a precision positive displacement flow meter designed for liquid measurement. It uses a pair of high-precision circular gears to form precisely defined measuring chambers and quantify the volume of fluid passing through the meter.

Its main advantage is highly accurate measurement of small flows involving high-viscosity liquids. Before purchasing a round gear flow meter, understanding its advantages and limitations and selecting a reliable manufacturer can significantly reduce the risk of measurement errors, premature wear, and maintenance problems during long-term operation.

1. Key Advantages of Round Gear Flow Meters

1.1 High Measurement Accuracy

Round gear flow meters can typically achieve an accuracy of ±0.5%, while high-end customized models can reach ±0.1% to ±0.2%.

They also offer excellent repeatability, making the measurement data suitable for applications where accurate quantity control is critical, including oil and fuel measurement, lubricants, chemical additives, and automated precision dosing.

For high-value liquids, this level of accuracy can also be important for custody transfer, inventory management, and batch control.

1.2 Excellent Performance with High-Viscosity Liquids

One of the biggest advantages of a gear flow meter is its ability to measure high-viscosity liquids.

As liquid viscosity increases, internal leakage through the small clearances between the gears generally decreases, which can improve measurement stability. Depending on the specific model and design, round gear flow meters can be used with liquids having viscosities of up to approximately 25,000 mm²/s.

Minor changes in viscosity generally have a relatively limited effect on measurement performance compared with many other flow measurement technologies.

This makes round gear flow meters particularly suitable for:

• Resins
• Inks
• Lubricating oils
• Syrups
• Adhesives
• High-viscosity chemical additives

For these applications, a gear flow meter can provide reliable low-flow and dosing measurement where conventional flow meters may have difficulty maintaining accuracy.

1.3 Flexible Installation Requirements

Round gear flow meters have relatively relaxed installation requirements.

Unlike some velocity-based flow meters, they are generally less affected by upstream flow disturbances caused by elbows, valves, or other piping components. In many applications, long upstream and downstream straight pipe sections are not required.

Depending on the specific model and installation conditions, the meter can be installed horizontally, vertically, or at an inclined angle.

This flexibility makes it suitable for compact equipment, branch pipelines, filling systems, bypass lines, lubrication systems, and hydraulic oil circuits where installation space is limited.

1.4 Sensitive to Small Flows and Compatible with Multiple Signals

Round gear flow meters can provide excellent sensitivity at low flow rates. Their low starting flow rate makes them suitable for applications involving small-volume dosing, low-flow filling, and precise liquid addition.

Depending on the configuration, available output signals may include:

• Pulse output
• 4-20 mA
• RS485
• Modbus communication

These outputs allow the flow meter to be integrated into industrial automation systems, DCS platforms, energy monitoring systems, and IoT-based process control systems.

2. Main Disadvantages and Application Limitations

Although round gear flow meters offer excellent accuracy for specific applications, they are not suitable for every liquid or operating condition.

Understanding their limitations is essential before selecting a model.

2.1 Strict Requirements for Liquid Cleanliness

This is one of the most important limitations of a round gear flow meter.

The gears operate with very small internal clearances. Solid particles, fibers, crystals, or other contaminants in the liquid can accelerate gear wear and, in severe cases, cause the gears to jam.

For this reason, a precision Y-type filter or other suitable filtration system should normally be installed upstream of the flow meter when the process conditions require it.

Air entrainment is another important concern. Air bubbles or gas pockets passing through the meter can cause significant measurement errors.

Round gear flow meters are designed for liquids and are not suitable for gas measurement or gas-liquid two-phase flow.

If the process contains a significant amount of entrained air, a suitable air eliminator or degassing device should be considered.

2.2 Pressure Loss in the Pipeline

Because the fluid pressure drives the gears and the mechanical measuring mechanism, a round gear flow meter inevitably introduces some pressure loss into the pipeline.

The pressure drop generally increases as liquid viscosity and flow rate increase.

This can be particularly important in:

• Low-pressure piping systems
• Pump-driven systems with limited head margin
• High-viscosity liquid transfer systems
• Energy-sensitive processes

Before selecting the meter, the expected pressure drop should be checked against the available pump head and the maximum allowable pressure loss of the process.

2.3 Mechanical Wear and Periodic Maintenance

Unlike completely static flow measurement technologies, a gear flow meter contains moving mechanical components.

The gears and bearings can gradually wear during long-term continuous operation. Over time, this wear may cause measurement accuracy to drift.

Regular inspection, calibration, and replacement of wear components may therefore be required depending on operating conditions and measurement requirements.

Standard models also have defined temperature and pressure limits. For extremely high-temperature, high-pressure, or corrosive applications, special materials and customized configurations may be required.

2.4 Limited Medium Compatibility and Lower Cost Effectiveness for Large Diameters

Round gear flow meters are particularly suitable for medium- and high-viscosity liquids.

For low-viscosity liquids such as clean water or certain dilute solvents, internal leakage can become more significant and measurement accuracy may decrease. Therefore, a round gear flow meter is generally not the first choice for conventional clean-water flow measurement.

The technology is typically most cost-effective in small and medium pipe sizes, such as DN4 to DN50, depending on the application.

For larger sizes such as DN80 and above, the equipment can become heavier and more expensive, making it less attractive for high-flow main pipelines compared with other flow measurement technologies.

3. Recommended Chinese Manufacturer: Aister ATLC Series Round Gear Flow Meter

For buyers looking for a Chinese-made round gear flow meter, the Aister ATLC Series is designed for precision measurement of small and medium flows involving high-viscosity liquids.

3.1 Precision Manufacturing for Stable Measurement Accuracy

The Aister ATLC round gear flow meter uses precision CNC machining and grinding processes for the measuring chamber and gears.

The maximum accuracy can reach ±0.2%, depending on the model and configuration.

The meter can also use non-contact magnetic sensing technology to detect gear rotation, helping reduce the influence of mechanical vibration on the measurement signal.

For applications requiring long-term continuous operation, stable measurement performance is particularly important in industries such as chemical processing, food and beverage, and hydraulic systems.

3.2 Multiple Material Options for Challenging Applications

The meter body can be manufactured from 304 or 316L stainless steel, while PEEK gears can be selected for applications requiring enhanced wear resistance and chemical resistance.

Different sealing materials, including FKM (fluorocarbon rubber) and PTFE, can also be selected according to the characteristics of the measured liquid.

Depending on the configuration, the pressure rating can reach up to 20 MPa, with an operating temperature range of approximately -20°C to 200°C.

This makes the ATLC series suitable for a wide range of applications involving:

• High-pressure hydraulic oil
• Mildly corrosive chemical additives
• Food-grade edible oils
• Pharmaceutical syrups
• Lubricants
• Resins and adhesives

The exact material and pressure/temperature configuration should be selected according to the actual process conditions.

3.3 Integrated Display and Communication Options

The Aister ATLC series can be equipped with an integrated LCD display for viewing instantaneous flow rate and accumulated flow.

RS485 communication with Modbus protocol is available for integration with industrial automation and energy management systems.

Complete measurement packages can also be configured with upstream filters and air eliminators where required, helping address common problems caused by solid particles and entrained air.

This integrated approach can simplify system design and reduce the need to source multiple components separately.

3.4 Cost-Effective Chinese Alternative to Imported Brands

With large-scale manufacturing capabilities and an established quality-control system, Aister supplies flow measurement products to customers in 163 countries worldwide.

For applications involving small and medium flow rates and high-viscosity liquids, the ATLC series provides a cost-effective alternative to comparable imported gear flow meters.

For bulk purchasing, Chinese manufacturing can also provide advantages in terms of overall equipment cost.

Customized configurations, including high-pressure versions, remote display options, and explosion-proof models, can be provided according to project requirements.

4. Typical Applications of the Aister ATLC Series

The Aister ATLC round gear flow meter can be used in a variety of precision liquid measurement applications, including:

• Lubricant filling and dispensing systems
• Resin and adhesive dosing systems
• Fuel and oil custody transfer and inventory measurement
• Hydraulic equipment energy monitoring
• Food syrup filling and dosing
• Laboratory liquid reagent dosing
• Chemical additive metering
• High-viscosity liquid batching systems

The most suitable configuration depends on the liquid viscosity, flow range, pressure, temperature, cleanliness, and required measurement accuracy.

5. Practical Round Gear Flow Meter Selection Guide

Choosing the right gear flow meter is not simply a matter of selecting the highest accuracy available. The meter must be matched to the actual process conditions.

5.1 Confirm the Medium and Operating Conditions

A round gear flow meter is generally best suited for clean, single-phase liquids with medium to high viscosity.

If the liquid contains significant amounts of solid particles, fibers, crystals, or other contaminants, another flow measurement technology may be more appropriate.

Similarly, gas-liquid two-phase flow should not be measured directly with a standard round gear flow meter.

5.2 Install the Necessary Upstream Components

Install a suitable precision filter upstream of the flow meter to protect the gears from solid contaminants.

If the pipeline is prone to gas accumulation or the liquid contains entrained air, an air eliminator or degassing device should also be considered.

These components can help protect the measuring mechanism and improve measurement stability.

5.3 Check the Pressure Drop Before Purchase

Before purchasing a gear flow meter, calculate the expected pressure loss under the actual operating flow rate and viscosity.

The normal operating flow rate should preferably remain within a suitable portion of the meter's rated range. In many applications, operating around 50% to 80% of the selected meter's flow range provides a practical balance between measurement performance and operating margin.

The total project budget should also include potential costs for periodic calibration, inspection, and replacement of wear components.

5.4 Choose the Manufacturer Based on the Complete Solution

For applications where measurement accuracy, long-term stability, material compatibility, and system integration are important, buyers should evaluate more than the initial product price.

Consider:

• Measurement accuracy and repeatability
• Flow range
• Liquid viscosity range
• Pressure and temperature rating
• Wetted material compatibility
• Seal material
• Output and communication options
• Filtration requirements
• Calibration and maintenance support
• Customization capability
• Total cost of ownership

For buyers looking for a Chinese-made precision gear flow meter for high-viscosity liquid applications, the Aister ATLC Series is one option worth considering.

Conclusion

A round gear flow meter is a specialized positive displacement flow meter designed primarily for accurate measurement of clean, high-viscosity liquids and low-flow applications.

Its major advantages include high measurement accuracy, excellent performance with viscous liquids, flexible installation, low-flow sensitivity, and compatibility with various industrial communication signals.

However, it also has important limitations. It requires relatively clean liquids, introduces pressure loss, contains mechanical components subject to wear, and is generally less suitable for low-viscosity liquids, contaminated fluids, gas-liquid two-phase flow, and very large pipelines.

For overseas buyers evaluating Chinese suppliers, the Aister ATLC Series offers a combination of precision machining, multiple material options, intelligent communication functions, and customizable configurations. It can be considered as a cost-effective Chinese alternative for applications involving high-viscosity liquid measurement, precision dosing, filling, and process control.
