Thermal Mass Flow Meter 4-20mA vs. RS485: How to Choose the Right Communication Method

Thermal mass flow meters are widely used for compressed air monitoring, plant air consumption, and aeration gas measurement. Choosing the right communication output is essential for transferring field measurement data reliably and efficiently to a PLC, DCS, or energy management platform.

The choice between communication methods is not simply about which technology is more advanced. It is mainly a trade-off between the simplicity and reliability of 4-20mA analog output and the richer data capabilities of RS485 digital communication. The right choice depends on your existing control system, data acquisition requirements, and long-term digitalization plans.

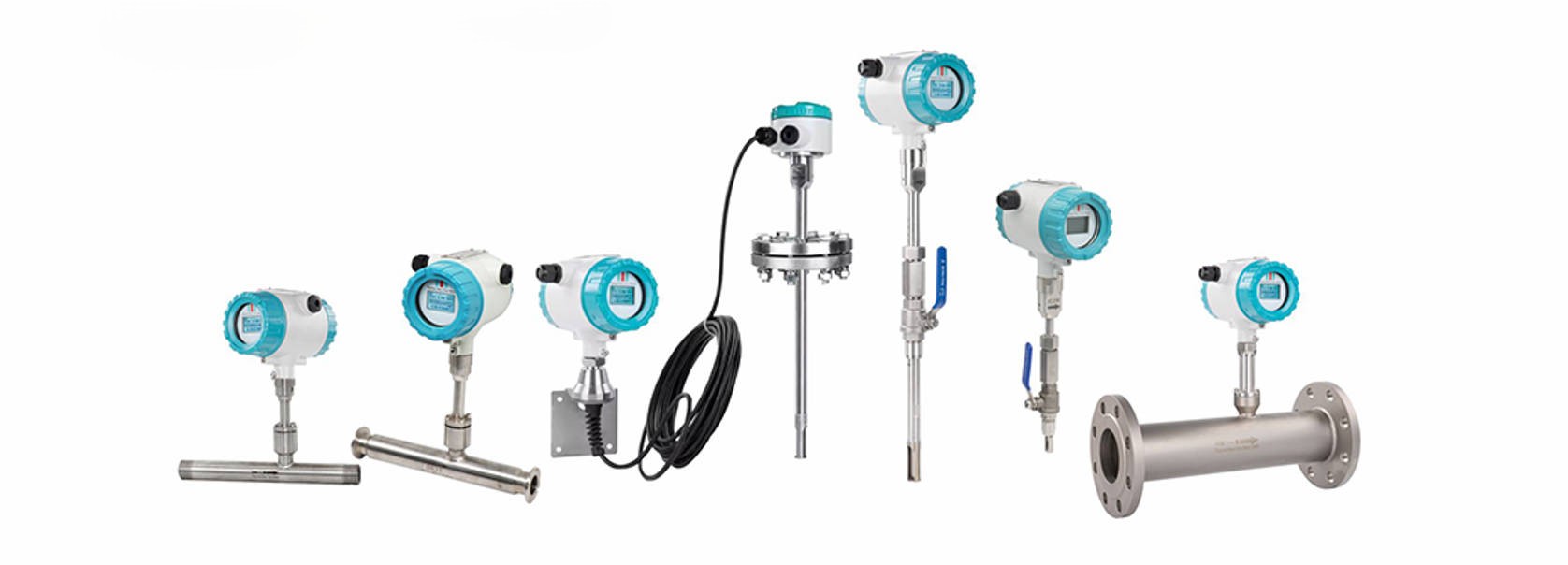

For example, the Aister ATMF Series Thermal Mass Flow Meter, manufactured by a Chinese flow measurement company, supports 4-20mA output and RS485 Modbus-RTU communication, with a dual-output configuration also available for different project requirements.

1. The Fundamental Difference: Analog Current vs. Digital Communication

4-20mA Analog Signal

With a 4-20mA output, the flow meter converts the measured instantaneous flow rate into a proportional electrical current. Typically, 4mA represents zero flow and 20mA represents the configured full-scale flow rate.

A properly designed 4-20mA system can also provide simple fault detection. For example, if the signal loop is broken, the current can drop to 0mA, allowing the control system to identify a wiring or signal fault.

The 4-20mA signal has been used in industrial automation for decades and is supported by virtually all mainstream PLC and DCS platforms through analog input modules. This gives it excellent compatibility and makes it particularly suitable for conventional process control.

Limitation: A single 4-20mA loop normally carries only one primary process variable, such as instantaneous flow rate. Additional information such as totalized flow, gas temperature, alarm status, or device parameters cannot be transmitted through the same analog loop.

RS485 Digital Communication

RS485 transmits digital data, commonly using the Modbus-RTU protocol. Instead of carrying only one analog variable, a single communication bus can be used to read multiple parameters, including:

• Instantaneous flow rate
• Totalized flow
• Gas temperature
• Sensor or probe alarms
• Device status
• Other meter parameters

The RS485 registers of the Aister ATMF Thermal Mass Flow Meter can provide access to these measurement and status parameters. Depending on the configuration, selected meter settings can also be adjusted remotely without opening the instrument enclosure at the installation site.

This makes RS485 particularly useful for applications that require centralized data collection, energy monitoring, or integration with industrial software.

2. 4-20mA vs. RS485: Key Differences at a Glance

3. Three Key Factors for Choosing the Right Communication Method

1. Check the Interfaces of Your Existing Control System

This should be the first consideration.

If your PLC or DCS only has analog input modules, 4-20mA is usually the most straightforward option. It can be connected directly to the existing control system without requiring additional communication interfaces or protocol configuration.

If your control system already has an RS485 interface and supports Modbus-RTU, RS485 can provide significantly more data from the same flow meter.

For demanding industrial environments, the Aister ATMF Series can be configured with isolated 4-20mA output to reduce the impact of ground potential differences and help maintain stable signal transmission. This can be particularly useful around variable-frequency drives, high-power motors, and other electrically noisy equipment in compressed air systems.

2. Determine What Data You Actually Need

If you only need instantaneous flow rate for interlocking, process monitoring, or PID control, 4-20mA is usually sufficient. It is simple to configure, easy to troubleshoot, and widely supported.

However, if you also need:

• Totalized flow
• Gas temperature
• Instrument alarm status
• Device operating status
• Multiple measurement parameters

then RS485 is generally more suitable.

With one digital communication connection, the flow meter can provide multiple parameters to an energy management system, SCADA software, or upper-level computer without requiring additional analog signal loops for every parameter.

3. Consider the Number of Meters and Transmission Distance

For a small number of meters installed at different locations, the simplicity of 4-20mA can be an advantage.

For applications with multiple thermal mass flow meters installed in a concentrated area, RS485 can provide greater wiring efficiency.

Typical examples include:

• Multiple compressed air meters in a central air compressor station
• Several meters installed on plant air headers and branch lines
• Multi-point gas monitoring in wastewater treatment aeration systems
• Centralized flow monitoring across multiple production areas

When the number of measurement points reaches four or more, or when the meters are located relatively far from the central control room, the wiring advantages of RS485 become more apparent.

For example, consider a wastewater treatment project with more than 40 gas measurement points. Connecting every meter to the control system through individual 4-20mA loops can require a substantial amount of signal cable and analog input modules. With an RS485 network, multiple meters can be connected to a shared communication bus, potentially reducing overall wiring and I/O requirements.

4. A Practical Compromise: 4-20mA + RS485 Dual Output

In many industrial projects, you do not necessarily have to choose between 4-20mA and RS485.

The Aister ATMF Thermal Mass Flow Meter can support dual-output configurations, allowing both communication methods to work together. This approach can be particularly useful when upgrading an existing industrial control system toward more comprehensive digital data management.

4-20mA Channel: Real-Time Process Control

The 4-20mA signal can transmit instantaneous flow rate to the PLC or DCS for:

• Real-time process monitoring
• Interlocking
• PID control
• Process protection

This allows the existing control loop to continue operating without major changes.

RS485 Channel: Digital Data Management

At the same time, the RS485 connection can provide:

• Totalized flow
• Gas temperature
• Alarm information
• Device status
• Other available meter parameters

These data can be transferred to an energy management platform, SCADA system, or upper-level computer for energy analysis, reporting, and equipment monitoring.

Why Use Both?

The dual-output approach allows an existing control system to remain in operation while adding digital data acquisition capabilities.

In other words, you can maintain the original 4-20mA process control loop while using RS485 for additional digital monitoring. This provides a practical way to upgrade an existing system without completely replacing the control architecture and leaves more flexibility for future system expansion.

5. Common Selection and Installation Mistakes to Avoid

Use Proper Cable for RS485

For RS485 communication, use shielded twisted-pair cable suitable for industrial communication networks. Proper termination resistors should be installed at the appropriate ends of the RS485 bus.

Communication cables should also be routed away from high-power cables and strong electromagnetic interference sources whenever possible. Proper grounding, shielding, and cable routing can help reduce communication errors and data loss.

Consider Isolated 4-20mA Output

For 4-20mA applications, an isolated output can be beneficial when there are differences in ground potential between the flow meter and the control system.

This can help reduce signal drift and improve the reliability of analog measurements in electrically complex industrial environments.

Do Not Confuse Pulse Output with RS485

Pulse output and RS485 communication serve different purposes.

A pulse output can be used for flow totalization or pulse-based flow counting, but it does not provide the same multi-parameter communication capability as RS485.

Depending on the instrument configuration, RS485 can provide access to instantaneous flow, totalized flow, temperature, alarms, device status, and other parameters through the communication registers.

Therefore, if your project requires centralized access to multiple flow meter parameters, pulse output should not be treated as a substitute for RS485 communication.

Conclusion: Which One Should You Choose?

The choice between 4-20mA and RS485 should be based on your control system, data requirements, number of measurement points, and future expansion plans.

Choose 4-20mA when:

• Your PLC/DCS primarily uses analog inputs
• You only need instantaneous flow measurement
• The flow signal is used for PID control or interlocking
• You want a simple and widely compatible signal interface
• The application involves strong electrical interference and conventional process control

Choose RS485 Modbus-RTU when:

• You need instantaneous and totalized flow data
• Gas temperature, alarms, and device status are also required
• Multiple thermal mass flow meters need to be centrally monitored
• The system is being integrated with an energy management or SCADA platform
• Reducing signal cabling and analog I/O requirements is important

Consider a dual 4-20mA + RS485 configuration when:

• You need real-time process control through the PLC/DCS
• You also want detailed digital data for energy management
• You are upgrading an existing industrial control system
• You want to leave room for future digitalization and system expansion

For compressed air systems, plant air monitoring, aeration gas measurement, and other industrial gas applications, the right communication method should be selected together with the flow range, gas type, pipe size, pressure, temperature, installation conditions, and control system architecture.

The Aister ATMF Series Thermal Mass Flow Meter supports 4-20mA, RS485 Modbus-RTU, and dual-output configurations, providing flexibility for both conventional process control and centralized digital measurement applications. If you are unsure which output configuration is suitable for your project, providing your gas type, pipe size, flow range, pressure, temperature, number of measurement points, and PLC/DCS interface can help determine the appropriate configuration.

Contact our team for an expert consultation. Let us help you select the most efficient and cost-effective flow meter for your needs.
