Vortex vs. Orifice Flow Meter for Steam: Which One Should You Choose?

When it comes to steam measurement, vortex flow meters and orifice flow meters both have their place. There is no universal answer to which one is better. The right choice depends on your steam conditions, flow range, allowable pressure loss, maintenance requirements, and whether the measurement point is used for commercial or custody transfer applications.

The key difference is straightforward:

• Vortex flow meters are generally better suited for applications requiring a wider turndown ratio, lower pressure loss, lower maintenance, and integrated temperature and pressure compensation.
• Orifice flow meters remain a practical choice for high-temperature and high-pressure steam, standardized differential-pressure measurement, and applications where traditional metering and custody transfer practices are already established.

Below is a detailed comparison to help you determine which steam flow measurement technology better fits your requirements.

1. How Do Vortex and Orifice Flow Meters Work?

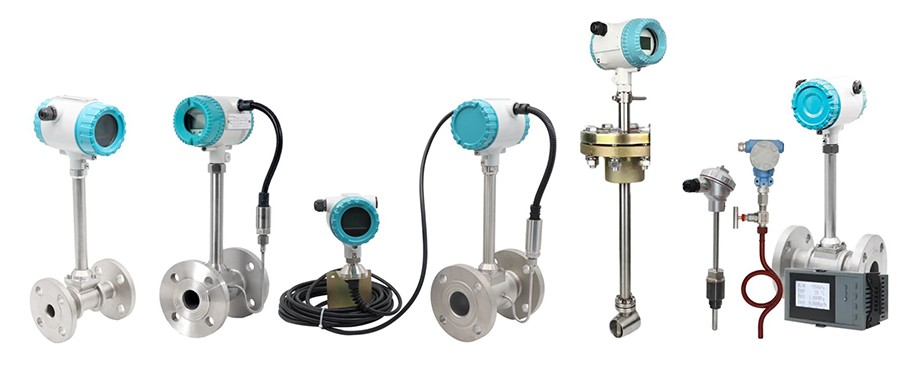

Vortex Flow Meter

A vortex flow meter measures flow velocity by detecting the frequency of vortices generated behind a bluff body, based on the Kármán vortex street principle.

For steam applications, the flow meter can be combined with temperature and pressure compensation to calculate and output mass flow rate. This makes vortex flow meters particularly convenient when steam consumption needs to be monitored and managed based on mass rather than volumetric flow.

Orifice Flow Meter

An orifice flow meter measures flow by creating a pressure difference across an orifice plate installed in the pipeline. The differential pressure is measured using a differential pressure transmitter, and the flow rate is calculated based on the relationship between differential pressure and flow velocity.

Temperature and pressure compensation can also be incorporated to improve steam mass flow measurement.

2. Vortex Flow Meter vs. Orifice Flow Meter: Key Differences

Important: Actual accuracy, temperature limits, pressure ratings, straight-run requirements, and applicable certifications depend on the specific meter design, process conditions, installation, and local regulations. Always confirm the manufacturer's specifications before making a final selection.

3. When Should You Choose a Vortex Flow Meter for Steam?

A vortex flow meter is often a better choice when your steam system has significant flow fluctuations or requires reliable measurement at relatively low flow rates.

Consider a vortex flow meter when:

1. Steam demand varies significantly

If steam consumption changes substantially throughout the day or across different seasons, a wider turndown ratio can be a major advantage.

For example, seasonal heating systems may experience large differences between peak and off-peak steam demand.

2. Pressure loss matters

Permanent pressure loss is an important consideration in steam systems because unnecessary pressure loss can increase energy consumption.

If your goal is to reduce avoidable pressure loss while maintaining reliable flow measurement, a vortex flow meter can be advantageous compared with a conventional orifice plate.

3. You want lower maintenance requirements

Vortex flow meters have no moving mechanical parts, which helps reduce routine maintenance.

This can be especially useful when the flow meter is installed in a location where removing the instrument or shutting down the pipeline is inconvenient.

4. You need integrated temperature and pressure compensation

For steam measurement, simply measuring volumetric flow is often not enough.

If the application requires mass flow measurement, a vortex flow meter with integrated temperature and pressure compensation can calculate and directly output steam mass flow, simplifying the measurement system.

5. The installation conditions are acceptable

Vortex meters require appropriate upstream and downstream straight pipe lengths and can be affected by excessive mechanical vibration.

If sufficient straight pipe is available and the pipeline has relatively low vibration, a vortex flow meter can be a strong option.

Typical Applications

Vortex flow meters are commonly considered for applications such as:

• Steam distribution main lines
• Steam measurement at heat exchange stations
• Industrial steam consumption monitoring
• General process steam measurement
• Energy management and internal steam allocation

4. When Should You Choose an Orifice Flow Meter?

An orifice flow meter can still be the better choice when the application involves extreme process conditions, established differential-pressure measurement infrastructure, or strict requirements for standardized primary elements.

Consider an orifice flow meter when:

1. Steam temperature and pressure are extremely high

If the process temperature or pressure exceeds the allowable range of a particular vortex flow meter, an appropriately designed orifice measurement system may provide a more suitable solution.

This is particularly relevant for high-temperature, high-pressure steam applications.

2. There is sufficient straight pipe length

Orifice flow measurement generally requires suitable upstream and downstream piping conditions.

If the installation has sufficient straight pipe and the system can tolerate the permanent pressure loss caused by the orifice, this limitation may be less significant.

3. Existing custody transfer or commercial measurement practices use orifice plates

Some plants have used orifice-based steam measurement systems for many years and already have established engineering standards, maintenance procedures, calibration practices, and measurement infrastructure.

In these cases, continuing with an orifice-based system may simplify integration with existing equipment and procedures.

4. Steam flow conditions are relatively stable

Orifice flow meters generally have a narrower practical turndown ratio than vortex flow meters.

If the steam flow remains relatively stable and the operating range does not vary significantly, this limitation may not be critical.

5. Large-diameter pipelines require a cost-conscious solution

For large-diameter pipelines, a standard orifice plate can have a relatively low primary-element cost.

However, the total system cost should not be evaluated based on the orifice plate alone. The differential pressure transmitter, impulse piping, valves, installation, maintenance, and pressure-loss-related energy costs should also be considered.

Typical Applications

Orifice flow meters are still widely considered for applications such as:

• Main steam lines in power plants
• High-temperature and high-pressure superheated steam
• Large petrochemical steam networks
• Large-diameter steam pipelines
• Measurement points requiring standardized differential-pressure devices
• Applications with established commercial or custody transfer measurement procedures

5. Which Steam Flow Meter Should You Choose?

The decision between a vortex flow meter and an orifice flow meter should ultimately be based on your actual operating conditions, rather than simply comparing the specifications of the two technologies.

Choose a Vortex Flow Meter If:

• Steam flow fluctuates significantly.
• Low-flow measurement is important.
• You need a wider turndown ratio.
• Permanent pressure loss needs to be minimized.
• Low maintenance is a priority.
• You want integrated temperature and pressure compensation.
• The installation provides sufficient straight pipe.
• Pipeline vibration can be controlled.

Choose an Orifice Flow Meter If:

• Steam temperature and pressure are extremely high.
• The process exceeds the allowable limits of the selected vortex meter.
• Steam flow is relatively stable.
• A narrow turndown ratio is acceptable.
• Permanent pressure loss is not a major concern.
• Your facility already uses standardized orifice measurement systems.
• The measurement point must follow an established differential-pressure standard.
• A large-diameter pipeline requires a relatively economical primary element.

6. Final Recommendation

For most new steam measurement projects and system upgrades, vortex flow meters are becoming an increasingly attractive option because of their wider turndown ratio, relatively low pressure loss, low maintenance requirements, and ability to integrate temperature and pressure compensation.

However, this does not mean that vortex flow meters can replace orifice flow meters in every application.

If your steam system has large flow fluctuations, important low-flow measurement requirements, and a strong focus on reducing pressure loss and maintenance, a vortex flow meter is generally worth considering first.

If your application involves extremely high temperature and pressure, relatively stable flow conditions, established differential-pressure measurement infrastructure, or specific standardized measurement requirements, an orifice flow meter may still be the more appropriate solution.

The best steam flow meter is therefore not necessarily the one with the highest accuracy or the lowest purchase price. It is the one that provides the best overall balance between measurement performance, pressure loss, installation conditions, maintenance, certification requirements, and total cost of ownership for your specific application.

Need Help Selecting a Steam Flow Meter?

Before ordering a steam flow meter, provide the following process information to the manufacturer:

• Steam type: saturated steam or superheated steam
• Pipe size
• Operating pressure
• Operating temperature
• Minimum, normal, and maximum flow rate
• Required accuracy
• Available straight pipe length
• Allowable pressure loss
• Whether temperature and pressure compensation is required
• Whether the meter will be used for internal energy management or commercial/custody transfer measurement

With these parameters, a qualified flow meter manufacturer can recommend a suitable measurement technology, meter size, configuration, and accuracy level instead of selecting a meter based solely on price or nominal pipe diameter.
