What Is A Normal Flow Meter Reading?

In industrial flow measurement, one of the most common questions is: “Is my flowmeter reading normal?”
Unlike pressure or temperature, flow does not have a fixed “standard value.” Instead, the key lies in stability, operating range, and consistency with process conditions.

This guide breaks down clear, field-proven criteria to help engineers quickly distinguish normal vs abnormal flowmeter readings.

1. Core Criteria: Normal vs Abnormal Readings

Instantaneous Flow (Real-Time Flow)

✅ Normal Behavior

• Stable reading with smooth fluctuations
• Values change gradually, not abruptly
• Closely follows valve position or pump speed
• Operates within a reasonable percentage of range

❌ Abnormal Signals

• Constant zero reading while fluid is flowing
• Violent fluctuations or erratic spikes
• Persistent over-range (>90–95%)
• Long-term low flow (<10–30%)

 Engineering insight:
Erratic signals usually indicate flow disturbance, vibration, or sensor interference, while zero readings often point to installation or wiring issues.

Totalized Flow (Cumulative Flow)

✅ Normal Behavior

• Increases continuously over time
• Acts like an odometer (monotonic increase)

❌ Abnormal Signals

• No change despite flow
• Sudden reset to zero
• Reverse counting

 These issues typically relate to signal loss, power interruption, or configuration errors.

2. Normal Operating Range by Scale Type

Different flowmeters use different scaling methods. Understanding this is critical.

Linear Scale Flowmeters

(Electromagnetic, Turbine, Mass, Rotameter, etc.)

• Optimal range: 40% – 70% of full scale
• Upper limit: ≤ 90%
• Lower limit: ≥ 10%

 Why this matters:
Operating too low reduces accuracy, while too high risks signal saturation and wear.

Square Root Scale Flowmeters

(Differential pressure: orifice plate, venturi, etc.)

• Optimal range: 60% – 85%
• Upper limit: ≤ 95%
• Lower limit: ≥ 30%

 Reason:
Square root extraction compresses low-end resolution, making low flow readings less reliable.

3. Typical Flow Velocity & Flow Rate Reference Values

Liquid Applications (Water Systems)

• Electromagnetic flowmeter:
  • Typical: 0.5 – 4 m/s
  • Optimal: 1 – 3 m/s
• Turbine flowmeter:
  • Typical: 0.5 – 7 m/s
• Domestic / HVAC systems:
  • Normal: 0.5 – 2 m³/h

Gas & Compressed Air

• Typical velocity: 5 – 20 m/s
• Rotameter (variable area):
  • Best performance: 30% – 80% of range

 Design note:
Gas systems require higher velocity to maintain signal sensitivity and stability.

4. How to Read Different Types of Flowmeters

Mechanical (Dial / Register Type)

• Black digits: Integer (m³ or tons)
• Red digits / pointer: Decimal values

Example:
Black = 00127
Red pointer = 5 (×0.1)
→ Total = 127.5 m³

Rotameter (Glass Tube)

• Read at the widest part of the float
• Spherical float: read center
• Conical float: read top

Digital Flowmeters

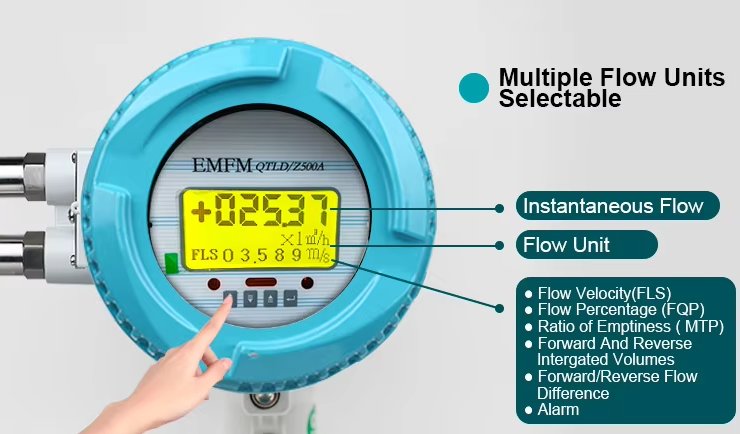

• Large display: Instantaneous flow (e.g., m³/h, L/min)
• Small display: Total flow (total m³)
• Units may include:
  • m³/h
  • t/h
  • Nm³/h (normalized gas flow)

5. Practical Troubleshooting Tips

When readings look abnormal, check systematically:

1. Process conditions
   • Is the valve or pump behaving correctly?
2. Installation issues
   • Straight pipe length sufficient?
   • Any vibration or air bubbles?
3. Electrical signals
   • Wiring stable?
   • Signal interference present?
4. Instrument configuration
   • Range set correctly?
   • Units consistent?

Conclusion

A “normal” flowmeter reading is not about a fixed number—it’s about stability, proportional response, and operating within an optimal range.

In practice:

• Keep flow within 40%–85% of full scale
• Ensure smooth, predictable fluctuations
• Monitor total flow continuity

By applying these principles, you can quickly diagnose issues, improve measurement accuracy, and ensure reliable process control.
