Coriolis vs. Thermal Mass Flow Meters: A Direct Comparison for Selection

When choosing a high-precision mass flowmeter, the key lies in first determining the measurement principle and accuracy standards, then comprehensively screening based on the working conditions, material, installation conditions, signal interface, and finally comparing the brand, service, and overall usage cost. This way, the suitable product can be selected step by step.

1. Coriolis vs. Thermal Mass Flow Meter: Operating Principles & Applications

Understanding the core technology is the first step in high-accuracy mass flow meter selection. The industrial market for direct mass measurement is dominated by two primary technologies: Coriolis mass flow meters and thermal mass flow meters. Their suitable applications differ significantly.

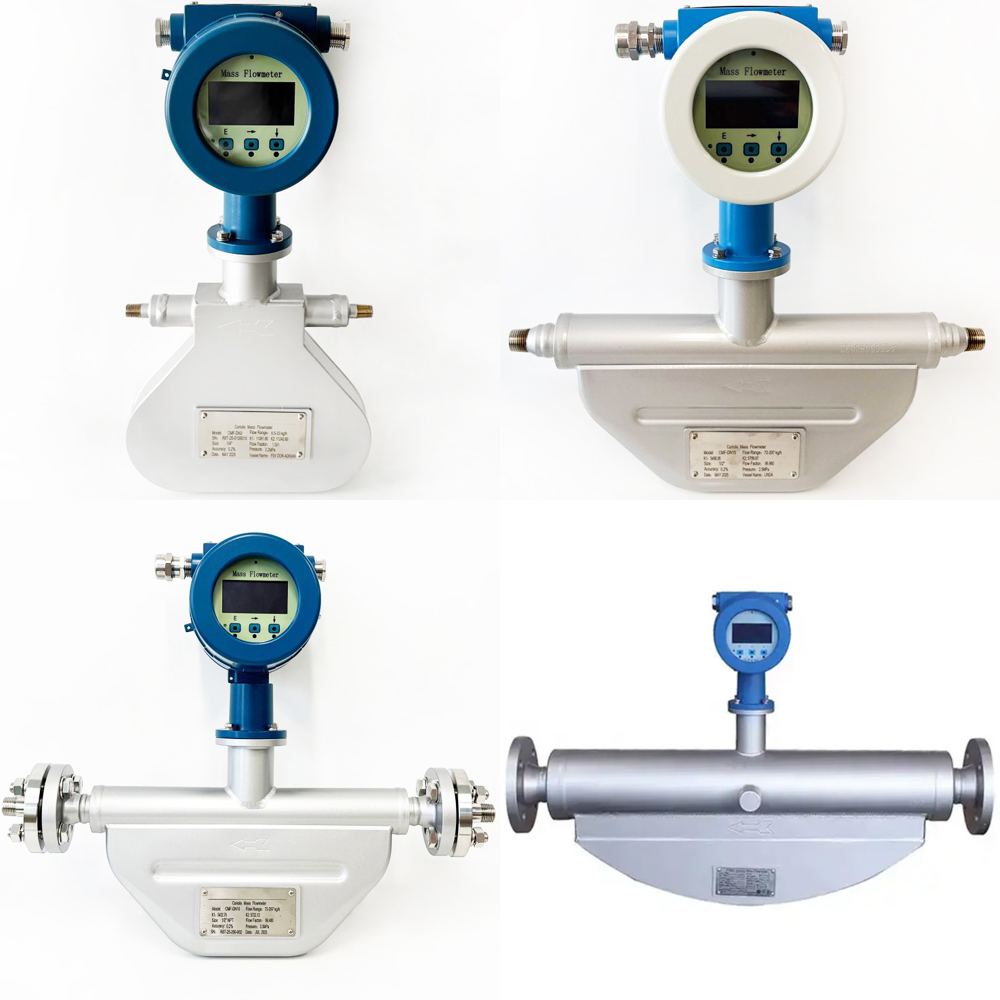

Coriolis Mass Flow Meters (Direct Mass Measurement)

• Accuracy: Up to $\pm0.05\%$ to $\pm0.1\%$ of reading.

• Capable Mediums: Liquids, gases, high-viscosity fluids, slurries, and multi-phase flows with minor entrained solids or gas bubbles.

• Key Advantages: Directly measures mass flow rate, density, and temperature simultaneously. The measurement is completely independent of changes in fluid temperature, pressure, viscosity, or conductivity. It offers an extremely wide turn-down ratio (up to 100:1).

• Limitations: Higher initial purchase cost; sensitive to severe pipeline vibrations and mounting stress.

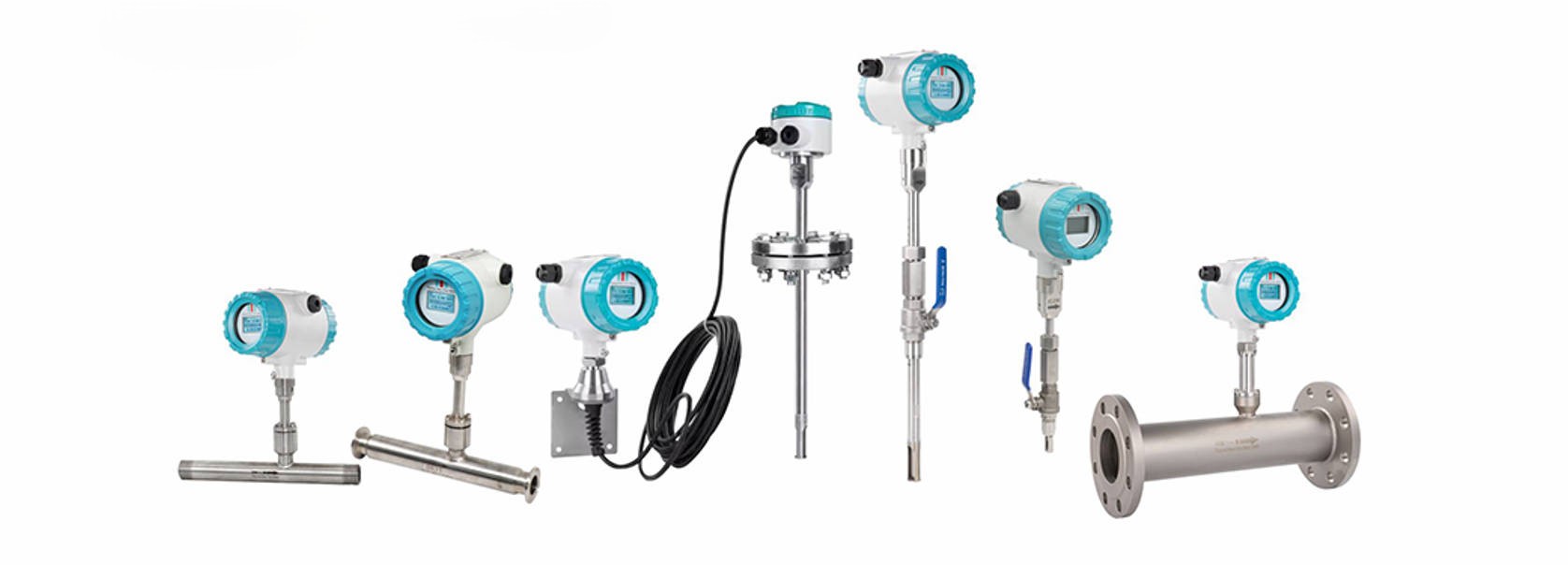

Thermal Mass Flow Meters (Inferred Gas Measurement)

• Accuracy: Typically $\pm0.5\%$ to $\pm1.0\%$ of full scale (FS).

• Capable Mediums: Clean, dry, and stable gases only (e.g., compressed air, $N_2$, $Ar$, $CO_2$).

• Key Advantages: Exceptional low-flow sensitivity, minimal pressure drop, no moving parts, and a significantly lower upfront investment.

• Limitations: Cannot be used for liquids, steam, wet/moist gases, or fluids with fouling compositions.

Selection Rule of Thumb:

Choose Coriolis meters for custody transfer, precise chemical batching, or high-viscosity applications. Opt for thermal mass meters for laboratory gas monitoring, semiconductor gas delivery, or facility-wide compressed air audits.

2. Mass Flow Meter Accuracy and Repeatability Standards

When comparing technical datasheets from mass flow meter manufacturers, it is vital to distinguish how accuracy is stated.

+------------------+---------------------------+-----------------------------------+
| Accuracy Class   | Performance Metrics       | Typical Industrial Application    |
+------------------+---------------------------+-----------------------------------+
| Ultra-High       | ±0.05% to ±0.1% of RD   | Fiscal Billing, Custody Transfer  |
+------------------+---------------------------+-----------------------------------+
| High Accuracy    | ±0.1% to ±0.2% of RD    | Chemical Batching, Pharma Feeding |
+------------------+---------------------------+-----------------------------------+
| Standard Process | ±0.2% to ±0.5% of FS    | General Process Plant Monitoring  |
+------------------+---------------------------+-----------------------------------+

% of Reading (RD) vs. % of Full Scale (FS)

Always prioritize instruments specified in % of Reading (% RD). If a meter's accuracy is based on % of Full Scale (% FS), the absolute measurement error multi-folds when the flow rate drops into the lower end of the range.

Repeatability Matters Most

For closed-loop process control, repeatability (recommended to be $\le \pm0.05\%$) is often more critical than absolute accuracy. It ensures long-term data consistency and system stability over months of continuous operation.

3. Matching Process Conditions & Media Compatibility

To prevent premature equipment failure, the meter specifications must align perfectly with your field operating parameters:


• Flow Range & Sizing: The optimal operating flow rate should fall within 50% to 80% of the meter's maximum capacity. Avoid sizing a mass flow meter based solely on the existing pipe size; choosing a slightly smaller meter diameter to increase fluid velocity often yields much better low-end accuracy.

• Extreme Temperature and Pressure: Standard premium meters handle ranges from $-200^{\circ}\text{C}$ to $+400^{\circ}\text{C}$. For high-pressure hydraulics or compressed gas injection, verify that the measuring tubes carry specific high-pressure ratings, up to 42 MPa (approx. 6000 psi).

• Chemical & Viscosity Compatibility:

  • Standard Fluids: Stainless Steel 316L.

  • Highly Viscous Media: Coriolis meters easily handle viscous fluids up to 8000 cSt (e.g., polymers, resins, heavy crudes).

  • Corrosive/Acidic Media: Upgrade to Hastelloy C measuring tubes or utilize specialized PTFE linings to withstand aggressive acids and chlorohydrins.

4. Installation Constraints, Explosion Protection & Hazardous Certifications

Physical environment limits play a massive role in actual on-site performance.

• Straight Pipe Run Requirements: Coriolis flow meters do not require straight upstream or downstream piping, making them ideal for tight skids. However, they must be isolated from severe pipe vibrations via flexible joints or heavy-duty mounting brackets. Conversely, thermal mass meters require at least 10D upstream and 5D downstream straight runs to ensure a fully developed turbulent flow profile.

• Hazardous Area Certifications: For oil, gas, and chemical refineries, meters must feature global explosion-proof ratings such as ATEX / IECEx (e.g., Ex d IIB T4 or Ex ia).

• Ingress Protection & Hygiene: Outdoor or wash-down installations require IP67 or IP68 enclosures. For food, beverage, and pharmaceutical processes, the meter must carry 3-A or EHEDG sanitary certifications with fine internal mirror-polishing.

5. Industrial Communication Protocols and Control System Integration

Modern digital flowmeters act as multi-variable process transmitters. Ensure the output interface matches your PLC/DCS architecture:

• Legacy Controls: 4-20mA analog loop, frequency/pulse outputs.

• Digital Fieldbuses: Modbus-RTU, HART, Profibus-DP, or PROFINET.

• Multi-Variable Edge: Coriolis transmitters can simultaneously output mass flow, volumetric flow, fluid density, and temperature over a single digital link, eliminating the need for separate density or RTD sensors.

6. Top Coriolis Mass Flow Meter Brands: International vs. Chinese Manufacturers

When navigating the market, buyers usually balance between market-leading premium brands and high-performing cost-effective alternatives.

1. Tier 1 International Brands (Premium / Custody Transfer Legacy)

• Emerson Micro Motion: The industry benchmark for ultra-high accuracy ($\pm0.05\%$) and elite stability, but commands a significant price premium.

• Endress+Hauser (E+H) / KROHNE: Deep application expertise in harsh chemical processing and highly corrosive environments with robust secondary containment options.

2. High-Quality Chinese Manufacturers (Cost-Effective / Capable OEM Alternatives)

• Aister, Q&T, Feejoy: Delivering solid $\pm0.1\%$ to $\pm0.2\%$ accuracy performance. These manufacturers offer direct Coriolis mass flow meter alternatives at 1/2 to 2/3 of the capital cost of Tier 1 brands, paired with fast global lead times and flexible custom engineering.

• Best Applied For: Fine chemical plants, pharmaceutical blending, and general industrial utilities seeking to lower CAPEX without sacrificing measurement data reliability.

7. Analyzing Total Cost of Ownership (TCO)

The purchase price of an instrument is only a fraction of its true lifetime cost.

• CAPEX: International brands $>$ Premium Chinese Manufacturers $>$ Standard Local Meters.

• Installation Cost: Coriolis meters require zero straight pipe runs, minimizing piping modification costs compared to vortex or DP meters.

• Maintenance & Calibration: Coriolis meters have no moving parts or internal obstructions, translating to zero routine maintenance and a 10+ year operating lifespan. Thermal mass meters require periodic cleaning if used on dirty, oily gases.

• Risk Mitigation: Deploying high-accuracy meters prevents costly product giveaway in billing, guards against chemical batch scrap, and eliminates industrial trade disputes.

8. Step-by-Step Mass Flow Meter Selection Checklist

Identify whether the node is for regulatory custody transfer (requires ultra-high accuracy) or standard automated process looping.

Evaluate fluid phase. Choose Coriolis for liquids, slurries, and high-viscosity fluids; choose thermal mass for dry, clean gas networks.

Calculate min, normal, and max flow rates. Match target flow to the 50%-80% optimal velocity range of the meter—do not default to pipe line size.

Check fluid acidity and solids concentration. Select wetted materials (316L, Hastelloy, or PTFE) and ensure pressure ratings meet maximum potential spikes (e.g., 42 MPa).

Check hazardous zone classifications for ATEX/IECEx explosion-proof tags. Verify straight run limits and design vibration dampening if required.

Select required digital outputs (Modbus, HART, Profibus) to match host DCS/PLC nodes.

Make Your Next Selection with Absolute Confidence



Choosing between Coriolis and thermal mass technologies is not about finding the "best" flow meter—it is about defining the exact boundary limits of your fluid, pressure, and process accuracy requirements. One wrong parameters match can lead to compliance issues or operational downtime.


Are you currently sizing a flow meter for a challenging industrial application?


Don't guess the specifications. Contact our engineering team today to get a complimentary fluid compatibility review, customized sizing calculations, and an objective technical evaluation tailored to your piping layout.


 [Request a Professional Sizing Consultation] / [Send An Email to an Instrumentation Engineersales@aistermeter.com]

Frequently Asked Questions (FAQ)

Q: Do Coriolis mass flow meters require straight pipe runs?

A: No. Unlike volumetric technologies (like turbine or vortex meters), Coriolis meters measure mass via inertial force fields generated inside vibrating tubes. They do not depend on fluid velocity profiles and can be placed right after elbows or valves, provided there is no severe pipe stress or mechanical vibration transferred to the sensor housing.

Q: Why is my high-accuracy flow meter drifting at low flow rates?

A: This is usually a symptom of choosing an oversized meter based on line size rather than actual mass velocity. At very low flow rates, the signal-to-noise ratio drops, and the measurement gets close to the meter's "Zero Stability" limit, causing accuracy percentages to expand significantly.

Q: Can a thermal mass flow meter measure steam or liquids?

A: No. Thermal mass meters rely on the constant thermal dispersion properties of a dry fluid layer cooling a heated platinum RTD sensor. Liquids and condensing steam carry vastly different heat transfer coefficients than dry gases, which immediately overwhelms the sensor and causes false readings.
