Electromagnetic flowmeters are widely used in water treatment, chemical processing, energy management, and trade settlement. Ensuring their accuracy through proper calibration is essential for reliable measurement and stable process control. This guide offers a clear, step-by-step overview—from basic concepts to advanced calibration techniques—to help technicians, engineers, and metrology professionals achieve precise and trustworthy results.


1. Understanding the Essence of Calibration

Calibration is often confused with verification or legal inspection, but they serve different purposes:

Calibration vs. Verification

• Calibration adjusts the instrument output to align with the true value, aiming to improve accuracy.

• Verification/Inspection is performed by an authorized metrology agency to determine whether the device meets regulatory standards.

Why Calibration Matters

• Removes systematic errors

• Ensures high-quality process control

• Supports cost accounting and legal trade measurement

• Extends instrument lifecycle and reliability

2. Theoretical Foundation of Electromagnetic Flowmeter Calibration

Electromagnetic flowmeters operate based on Faraday’s Law of Electromagnetic Induction:

Where:

• E – induced voltage

• B – magnetic field strength

• D – pipe diameter

• v – flow velocity

Calibration ensures the proportionality between the actual velocity and the meter output by accurately determining the instrument coefficient (K value).

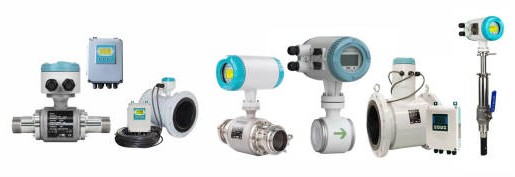

Learn more about Electromagnetic Flow Meter.

3. Three Main Calibration Methods

A. Wet Calibration – The Gold Standard

Wet calibration uses actual fluid to determine the true flow.

1. Volumetric Tank Method

• A proving sphere moves through a certified volume section

• Pulses from the flowmeter are counted to compute K = pulses / volume

• Ideal for laboratory-level precision and trade settlement

2. Master Meter Method

• A high-accuracy reference flowmeter is installed in series

• Both meters run under stable flow to compare values

• Common for onsite calibration and periodic accuracy checks

3. Gravimetric/Volumetric Method

• The fluid is collected and weighed or volumetrically measured

• Flow rate is determined from the mass/volume over time

• Ideal for water plants and R&D laboratories

B. Dry Calibration – Fast and Field-Friendly

Dry calibration checks the electrical components without using fluid.

1. Signal Simulator Calibration

• A simulator injects precise electrical signals into the transmitter

• Used to verify transmitter accuracy and diagnose faults

• Does not evaluate sensor or flow profile effects

2. Zero-Point Calibration

• Performed when the pipe is full and flow is completely stopped

• Removes drift caused by electrode polarization, noise, or deposits

• Essential for routine maintenance

C. Range (Output) Calibration – Synchronizing Signals

• Adjusts the 4–20 mA output to match DCS/PLC readings

• Used when the local display is correct but remote signals are wrong

• Helps eliminate communication or analog scaling mismatches

4. Practical Workflow: From Basic Maintenance to Advanced Field Calibration

Basic Level – Routine Maintenance

• Perform zero-point calibration every 3–6 months

• Use a signal simulator when DCS readings become abnormal

• Verify key parameters such as pipe size, range, and K-factor before calibration

Intermediate Level – Field Calibration Using the Master Meter Method

Preparation

• Select a reference meter with accuracy 2–3× better than the test meter

• Install the standard meter downstream with proper straight-pipe lengths (10D upstream, 5D downstream)

• Ensure the flow can be adjusted steadily across the required range

Testing

• Choose at least five points across the range (20–100% of Qmax)

• Record both meters' readings after the flow stabilizes

• Calculate error:

  Error=Qtest−QstandardQstandard×100%\text{Error} = \frac{Q_{test} - Q_{standard}}{Q_{standard}} \times 100\%Error=Qstandard​Qtest​−Qstandard​​×100%

Adjustment

• If errors are linear and consistent, update the K-value:

  Knew=Kold×Qstandard,avgQtest,avgK_{new} = K_{old} \times \frac{Q_{standard,avg}}{Q_{test,avg}}Knew​=Kold​×Qtest,avg​Qstandard,avg​​

Advanced Level – Diagnostic Calibration & Uncertainty Analysis

• Conduct full-range testing with more points for nonlinear behavior evaluation

• Assess repeatability (same condition, same operator)

• Assess reproducibility (different days, operators, or setups)

• Understand measurement uncertainty, which includes errors from the reference meter, installation, flow profile, and reading interpretation

5. Best Practices and Professional Recommendations

• Troubleshoot before calibrating—calibration does not fix hardware problems

• Zero-point calibration is the simplest and most cost-effective accuracy improvement

• Master meter calibration provides an excellent balance of accuracy and practicality

• For legal and trade purposes, only accredited laboratories should perform wet calibration

Conclusion

Calibrating an electromagnetic flowmeter is not just a technical requirement—it is a foundation for measurement reliability, process optimization, and legal compliance. By understanding the principles, choosing the right calibration method, and applying best practices, engineers can ensure that every flow measurement is precise, repeatable, and trustworthy.
