Integrated vs. Remote-Mounted Steam Flow Meters: How to Choose the Right Configuration and Avoid Unnecessary Costs

When purchasing a vortex steam flow meter, many buyers make the decision based on price alone: the integrated type is cheaper and easier to install, so they place the order immediately. But after installation, the high temperature around the steam pipeline may accelerate the aging of the converter electronics, cause the LCD display to darken, and eventually lead to repairs within a few years.

On the other hand, some production areas have clean, stable environments where an integrated steam flow meter would work perfectly well. Choosing a remote-mounted configuration in these cases simply means spending more money without getting a meaningful benefit.

The choice between an integrated steam flow meter and a remote-mounted steam flow meter is not simply about "expensive vs. cheap." It is mainly about matching the meter configuration to the installation environment.

Choose correctly, and you can save both money and maintenance effort. Choose incorrectly, and the money saved during purchasing may eventually be spent several times over on repairs, replacement, and production downtime.

This guide explains the fundamental differences between integrated and remote-mounted configurations and examines the special requirements of steam applications, helping buyers determine which configuration is more suitable for their project.

1. First, Understand the Difference: What Is Integrated vs. Remote-Mounted?

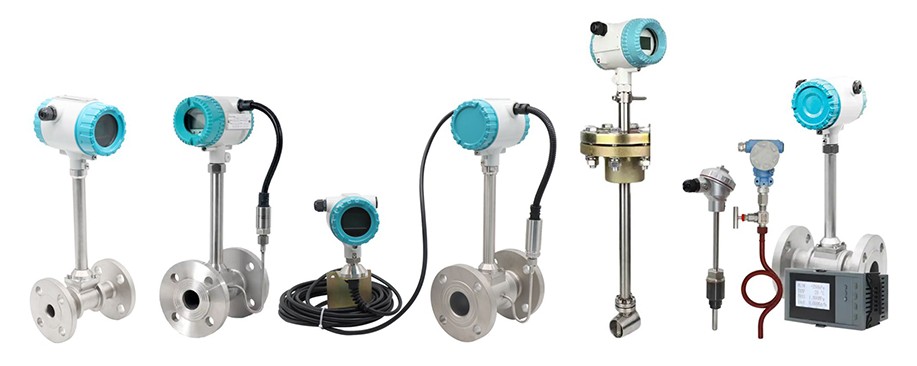

Integrated Steam Flow Meter

An integrated steam flow meter combines the flow sensor and converter into one assembly. The entire meter is installed directly on the pipeline, and flow data can be viewed locally.

Its main advantages are its compact design, simple installation, and the fact that no additional signal cable is required between the sensor and converter. In many applications, the meter can be installed and commissioned directly after delivery.

Remote-Mounted Steam Flow Meter

A remote-mounted steam flow meter separates the sensor from the converter.

The sensor is installed on the steam pipeline, while the converter is connected to the sensor through a dedicated signal cable and installed at a location away from the pipeline. The converter can typically be mounted on a wall, support column, or control cabinet.

Only the sensor assembly is located directly on the pipeline, while the display, parameter settings, and other operations are performed through the remote converter.

The measurement principle and basic accuracy are not fundamentally different between the two configurations. The key difference is:

How far are the electronic components from heat, vibration, moisture, and other sources of environmental stress?

This difference becomes particularly important in steam applications because steam pipelines often involve high temperatures, vibration, condensation, and difficult installation conditions.

2. Why Steam Applications Are Different: Don't Choose Based on Price Alone

Steam pipelines can have significantly higher surface temperatures than ordinary water or gas pipelines. Depending on the steam pressure, insulation condition, and installation environment, pipeline surface temperatures can range from relatively moderate to extremely high.

Several factors should therefore be considered before choosing the meter configuration.

High Temperature

An integrated converter is mounted close to the steam pipeline. If the converter is exposed to excessive ambient or radiated heat for long periods, the electronic components may age faster.

This can affect the service life of the electronics and display and may reduce long-term reliability.

Vibration

Steam pipeline start-up and shutdown, condensate drainage, pressure fluctuations, and changes in operating load can generate vibration.

If the converter is directly mounted on the vibrating pipeline, mechanical stress can potentially affect internal components, terminals, and wiring over time.

Moisture and Condensation

Condensation around the pipeline, wash-down water, and humid environments can increase the risk of moisture entering electrical enclosures if the installation and protection are not appropriate.

Limited Installation Space

Steam pipelines in factories are often installed close to walls, ceilings, or other equipment. In elevated or confined locations, reading the display or operating an integrated converter directly on the pipeline can be inconvenient.

In these conditions, an integrated meter may technically be installable, but its long-term operating convenience and durability may be compromised.

A remote-mounted configuration is designed to address these environmental and accessibility issues by moving the converter to a more suitable location.

3. When Should You Choose an Integrated Steam Flow Meter?

An integrated configuration is generally a good choice when the installation environment is relatively mild and the converter can operate within the manufacturer's specified ambient temperature range.

Typical situations include:

• The pipeline surface temperature is relatively low and does not expose the converter to excessive heat.
• Pipeline vibration is limited and the system operates relatively smoothly.
• The meter is installed at a convenient height and location for local reading and operation.
• There are many branch pipelines or individual steam metering points, making project cost an important consideration.
• The installation area is dry and does not have significant moisture or corrosive gases.
• The project prioritizes simple installation and lower initial cost.

Advantages of an Integrated Configuration

• Lower initial purchase cost
• Simple installation
• No separate cable required between the sensor and converter
• Compact installation
• Easy deployment across multiple metering points
• Suitable for projects where installation simplicity and budget control are important

For factories with many steam metering points, integrated meters can be a practical way to control the overall project cost when the installation conditions are suitable.

4. When Should You Choose a Remote-Mounted Steam Flow Meter?

A remote-mounted configuration becomes more attractive when the pipeline environment is harsh or the converter would be difficult to access.

High Pipeline Temperature

This is one of the most important reasons to consider a remote-mounted configuration.

If the steam pipeline has a high surface temperature, keeping the converter directly next to the pipeline can expose the electronics to excessive heat.

By moving the converter to a cooler location within its specified operating range, the risk of thermal stress on the electronics can be reduced.

Significant Pipeline Vibration

If the steam system experiences frequent start-ups and shutdowns or obvious mechanical vibration, moving the converter away from the vibrating pipeline can improve installation reliability.

Difficult Installation Location

If the pipeline is:

• close to a wall,
• installed near the ceiling,
• located at a high elevation,
• installed inside a pipe gallery,
• or otherwise difficult to access,

a remote converter can be mounted at a more convenient position for reading, configuration, and maintenance.

Humid or Corrosive Environment

If the pipeline area is exposed to condensation, wash-down water, high humidity, or potentially corrosive gases, installing the converter away from the immediate pipeline environment may provide better protection for the electronics.

Centralized Meter Management

For projects with multiple measurement points, converters can sometimes be arranged in more accessible locations to simplify inspection, data reading, and maintenance.

Hazardous or Classified Areas

In applications involving hazardous areas, the installation arrangement must comply with the applicable explosion-protection requirements and the manufacturer's certification.

A remote-mounted configuration may provide more flexibility in positioning the converter, but it does not automatically eliminate the need for appropriate hazardous-area certification.

Advantages of a Remote-Mounted Configuration

• Converter can be installed away from excessive heat
• Better separation from pipeline vibration
• More convenient display reading and operation
• Easier access for maintenance
• Greater flexibility in difficult installation environments
• Potentially better suited to centralized management

Although the initial purchase and installation cost may be higher, the remote-mounted configuration can reduce maintenance difficulties and improve long-term operating convenience in demanding applications.

5. Integrated vs. Remote-Mounted Steam Flow Meter: Full Comparison

The key point is that remote-mounted does not inherently mean more accurate. Its main value is environmental adaptability, accessibility, and long-term maintenance convenience.

6. Three-Step Decision Method: How to Save Money Without Creating Maintenance Problems

Step 1: Check the Temperature First

Start by checking the actual installation environment rather than looking only at the steam temperature.

Ask:

• What is the steam temperature?
• What is the pipeline surface temperature?
• Is the pipeline insulated?
• What is the expected ambient temperature around the converter?
• What ambient temperature range does the converter allow?

If the converter would be exposed to excessive heat, a remote-mounted configuration should be considered.

If the pipeline is properly insulated and the converter can remain within the manufacturer's specified ambient temperature range, an integrated configuration may be sufficient.

Step 2: Evaluate the Installation Environment

Next, look at the actual installation conditions.

Consider a remote-mounted configuration when:

• Pipeline vibration is significant.
• The area is humid.
• Condensation is common.
• Corrosive gases may be present.
• The pipeline is difficult to access.
• The display would be difficult to read.
• The converter needs to be installed in a more accessible location.
• Multiple meters need easier centralized inspection.

An integrated configuration may be sufficient when:

• The environment is clean and dry.
• Pipeline vibration is low.
• The meter is easy to access.
• The converter remains within its specified ambient temperature range.
• There are many metering points and installation cost is important.

Step 3: Calculate the Total Cost, Not Just the Purchase Price

This is the part many buyers overlook.

Do not compare only the initial purchase price. Consider the total cost of ownership, including:

• Installation
• Wiring
• Maintenance
• Replacement parts
• Meter replacement
• Troubleshooting
• Production downtime
• Labor costs

Using an integrated meter in a harsh environment simply to save on the initial purchase price may eventually cost much more if the converter suffers from premature failure or maintenance problems.

At the same time, buying remote-mounted meters for every point in a clean and accessible workshop may unnecessarily increase the project budget.

In harsh, high-temperature environments, a remote-mounted configuration can be the more economical choice in the long run. In normal environments, an integrated configuration can provide a simpler and more cost-effective solution.

7. Quick Selection Guide

Important: The actual temperature limits, power supply options, cable length, explosion-protection requirements, and installation restrictions vary by product. Always confirm them with the manufacturer's technical specifications before ordering.

8. Frequently Asked Questions

Q1: Can an integrated steam flow meter withstand high temperatures?

The sensor's temperature rating should be checked against the product specifications. However, the temperature rating of the sensor does not necessarily mean that the electronic converter can be exposed to the same temperature.

Because the converter of an integrated meter is mounted close to the pipeline, prolonged exposure to high heat can accelerate electronic aging.

The real question is not simply "Can it be installed?" but rather:

"Can the entire meter operate reliably for the expected service life under the actual installation conditions?"

Q2: Is a remote-mounted steam flow meter difficult to install?

It requires more installation work than an integrated meter because the signal cable needs to be routed and the converter needs to be mounted separately.

However, once properly installed, the remote-mounted configuration can make daily operation and maintenance easier.

Before ordering, confirm:

• Required cable type
• Maximum cable length
• Wiring requirements
• Converter mounting method
• Signal and communication requirements

Planning these details in advance can prevent installation problems later.

Q3: Is a remote-mounted steam flow meter more accurate than an integrated one?

Not necessarily.

Measurement accuracy is primarily determined by the measurement principle, sensor design, calibration, operating conditions, and product specifications.

An integrated meter and a remote-mounted meter based on the same measurement technology do not inherently have different accuracy simply because their structures are different.

The main advantage of the remote-mounted design is environmental adaptability, accessibility, and long-term operating reliability—not automatically higher accuracy.

Q4: We have multiple steam metering points. What is the most cost-effective configuration?

A mixed configuration can often be a practical solution.

Use integrated meters for metering points with relatively normal installation conditions to control the initial cost.

Use remote-mounted meters for points exposed to high temperature, significant vibration, difficult access, or other harsh conditions.

This approach avoids paying for remote mounting where it is unnecessary while providing additional flexibility where it actually matters.

For large projects, using products from the same manufacturer can also simplify spare parts, commissioning, technical support, and after-sales service.

Q5: How far away can the remote converter be installed?

The maximum distance depends on the manufacturer's cable specifications, signal transmission method, converter design, and communication requirements.

In many applications, cable lengths of several tens of meters may be possible, but this should never be assumed without checking the product specifications.

When requesting a quotation, provide the manufacturer with the approximate distance between the sensor and the proposed converter location so they can confirm the appropriate cable length and signal requirements.

Q6: We already have a remote-mounted meter. Can we change it to an integrated type?

Generally, the sensor and converter are matched according to the manufacturer's design and product specifications, so they should not simply be interchanged without confirmation.

If a different configuration is required, contact the original manufacturer to verify compatibility and determine whether the sensor, converter, wiring, or other components need to be changed.

This is another reason why the integrated vs. remote-mounted configuration should be determined during the initial selection stage.

Conclusion

There is no universally better choice between an integrated steam flow meter and a remote-mounted steam flow meter. The right choice depends on the installation environment.

For clean, accessible locations with relatively low vibration and acceptable converter ambient temperatures, an integrated configuration can reduce the initial purchase and installation cost.

For high-temperature, high-vibration, humid, confined, difficult-to-access, or centralized-management applications, a remote-mounted configuration can provide greater flexibility and make long-term maintenance easier.

The simplest way to make the decision is:

Check the temperature first → evaluate the installation environment → calculate the long-term total cost.

Do not choose a meter simply because it is cheaper to purchase.

For harsh environments, spending more on a remote-mounted configuration may actually be the more economical decision because it can reduce maintenance difficulties and potential downtime.

For normal environments, an integrated configuration can be the more practical choice because it keeps the installation simple and controls the project budget.

For projects with multiple steam metering points, a combination of integrated and remote-mounted configurations can often provide the best balance between cost, reliability, and maintenance convenience.

If you are unsure which configuration is suitable for your steam application, provide the steam temperature, pipeline size, pipeline insulation condition, installation environment, vibration level, and desired converter location to the flow meter manufacturer. These parameters can help determine the appropriate configuration before you place the order.
