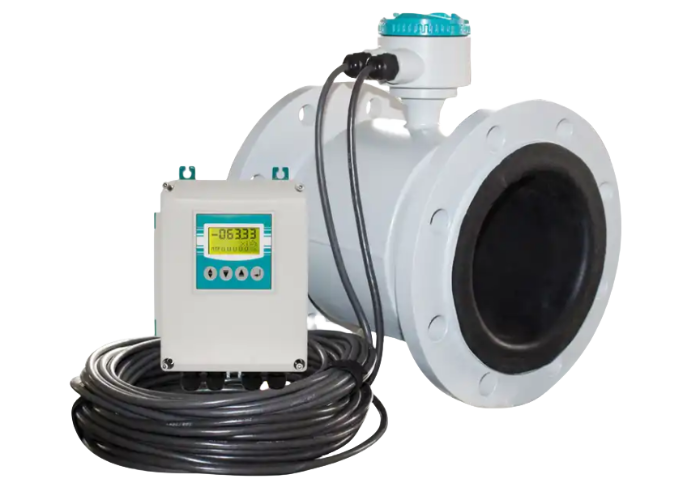

High-precision separated electromagnetic flowmeter, precise measurement solution in the chemical, water treatment and metallurgical industries.

Introduction Features Specifications Model Selection Application Installation

Introduction

Electromagnetic Flowmeter is a speed instrument for measuring the volume flow of conductive medium. It can output standard current signals for recording, adjustment and control while monitoring and displaying on the spot, so as to realize automatic control of detection and remote transmission of signals. It can be widely used in the flow measurement of conductive liquid in tap water, chemical industry, coal, environmental protection, textile, metallurgy, paper making and other industries.

The main advantages of using electromagnetic flow meter is that it is with no moving parts, no pressure loss and require very less maintenance.
Flange type magnetic flow meter can be made large size range from DN3-DN3000mm and with bi-directional flow measurement. Aister's electromagnetic flow meters are with built-in self-diagnosis function and support data record / bluetooth function and various kinds of output signals.

Compared with other liquid type flow meter, the limitations of magnetic flow meter is that it can only be used for conductive liquid.Regarding non or low conductive liquid such as petroleum products, organic solvents can not be used. Electromagnetic flow meter will be affected if there's strong magnetic filed in the surrounding environment.

Features

1.The total amount of forward, reverse and difference can be recorded；

2.The minimum conductivity of the liquid to be measured is ≥20μs/cm.

3.Current speed range：0.1 --- 15m/s ，current speed resolution：0.5mm/s;

4.AC high-frequency switching power ，range of voltage：85VAC --- 250VAC;

5.DC 24V switching power ，range of voltage：20VDC --- 36VDC；

6.Network function ：MODBUS, GPRS, PROFIBUS and HART communication protocol

7.LCD backlight display, online parameter modification, simple and convenient operation

8. The measurement accuracy is not affected by flow density, viscosity, temperature, pressure and conductivity

9. There are no moving parts in the measuring tube

010

10. Display language supports Chinese, English and Russian

Specifications

Size	DN3-DN3000mm
Nominal Pressure	0.6-1.6Mpa (2.5Mpa/4.0Mpa/6.4Mpa...Max 42Mpa)
Accuracy	+/-0.5%(Standard) +/-0.3% or +/-0.2%(Optional)
Liner	PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode	SUS316L, Hastelloy B, Hastelloy C Titanium, Tantalum, Platinium-iridium
Structure Type	Integral type, remote type, submersible type, ex-proof type
Medium Temperature	-20~+60 °C (Integral type)
Medium Temperature	Remote type (Neoprene, Hard Rubber, Polyurethane, EPDM) : -10~+80°C Remote type(PTFE/PFA/FEP)： -10~+160°C
Ambient Temperature	-20~+60 °C
Ambient Humidity	5-100%RH(relative humidity)
Measuring Range	Max 15m/s
Conductivity	>5us/cm
Protection Class	IP65(Standard); IP68(Optional for remote type)
Process Connection	Flange (Standard), Wafer / Thread / Tri-clamp (Optional)
Output Signal	4-20mA/Pulse
Communication	RS485(Standard), HART(Optional), GPRS/GSM (Optional)
Power Supply	AC220V (can be used for AC85-250V) DC24V (can be used for DC20-36V) DC12V (optional), Battery Powered 3.6V (optional)
Power Consumption	<20W
Alarm	Upper Limit Alarm / Lower Limit Alarm
Self-diagnosis	Empty Pipe Alarm, Exciting Alarm
Explosion Proof	ATEX

Model Selection

01 Caliber
02 Nominal Pressure
03 Connection Mode
04 Liner Material
05 Electrode Material
06 Structure Type
07 Power
08 Output communication
09 Converter Figure

Application

Industrial process

Energy measurement

Environmental protection engineering

Transportation

Biotechnology

Scientific experiment

Marine meteorology

Rivers and lakes

Installation

In order to obtain a stable and accurate flow measurement, it is very important that the flow meter is installed correctly in the pipe system.
Do not install the meter near equipment that produces electrical interference such as electric motors, transformers, variable frequency, power cables etc.
Avoid locations with pipe vibrations for example pumps.
Do not install the meter close to pipeline valves, fittings or impediments which can cause flow disturbances.
Place the meter where there is enough access for installation and maintenance tasks.
In order to obtain a stable and accurate flow measurement, it is very important that the flow meter is installed correctly in the pipe system.
Do not install the meter near equipment that produces electrical interference such as electric motors, transformers, variable frequency, power cables etc.
Avoid locations with pipe vibrations for example pumps.
Do not install the meter close to pipeline valves, fittings or impediments which can cause flow disturbances.
Place the meter where there is enough access for installation and maintenance tasks.

lnstall at the lowest point and vertical upward direction Don't install at the highest point or vertical downward diection	When drop is more than 5m, install exhaust valve at the downstream
lnstall at the lowest point when used in open drain pipe	Need 10D of upstream and 5D of downstream

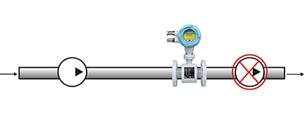

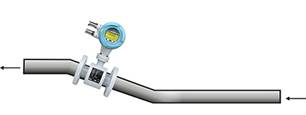

Dont' install it at the entrance of pump, install it at the exit of pump	lnstall at the rising direction

Product Recommendation

ATWG Gas Turbine Flowmeter

ATWG gas turbine flowmeter is mainly used for the flow measurement of natural gas, air, nitrogen and other medium fluids in industrial pipelines, and is almost unaffected by fluid density, pressure, temperature, viscosity and other parameters when measuring the volume flow under working conditions.

Consult Now

Learn More

Consult Now

Learn More

ATCF Coriolis Mass Flow Meter

Coriolis mass flow meter is designed according to micro motion and Coriolis principle. It is a leading precision flow and density measurement solution offering the most accurate and repeatable mass flow measurement for virtually any process fluid, with exceptionally low pressure drop.

Consult Now

Learn More

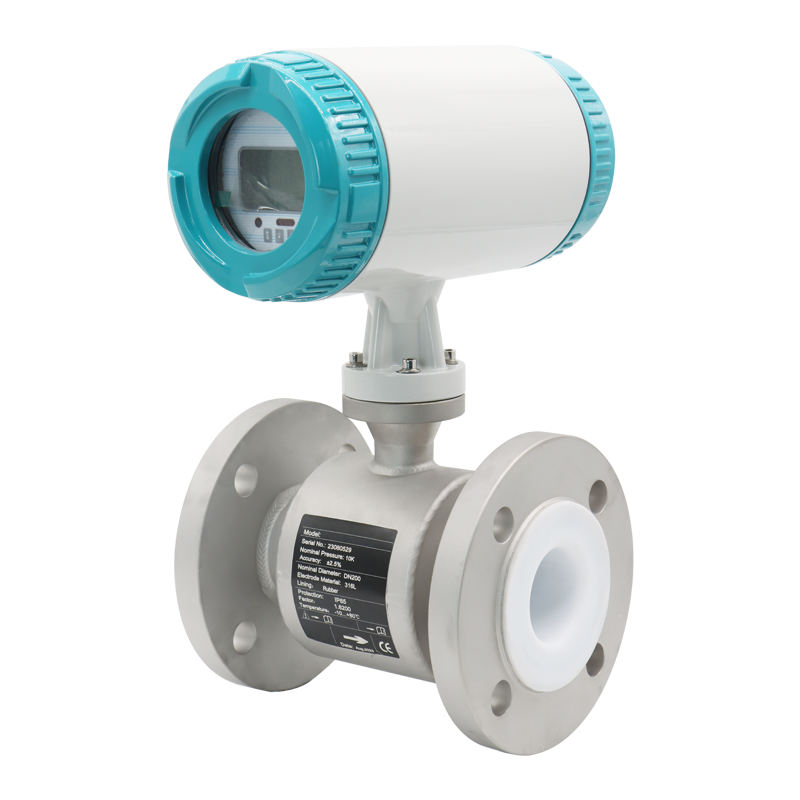

ATLD Flange Connected Electromagnetic Flow Meter

Electromagnetic flow meter is one of the most popular flow meters. Flange type electromagnetic flow meter has been used for more than 50 years worldwide. It is widely used for all conductive liquids in every industry, such as water, acid, alkali, milk, slurry etc.

Consult Now

Learn More

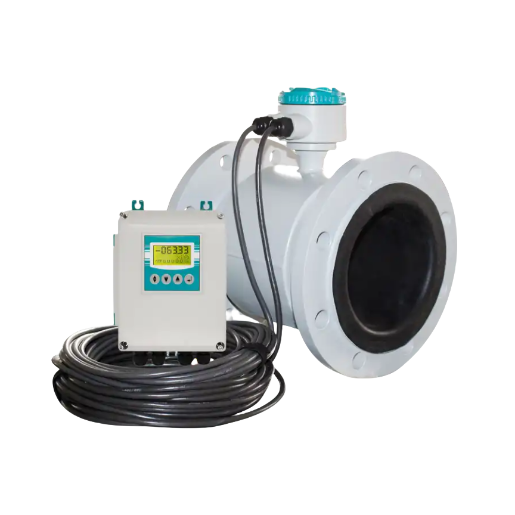

ATLD Series Separated Electromagnetic Flow Meter
