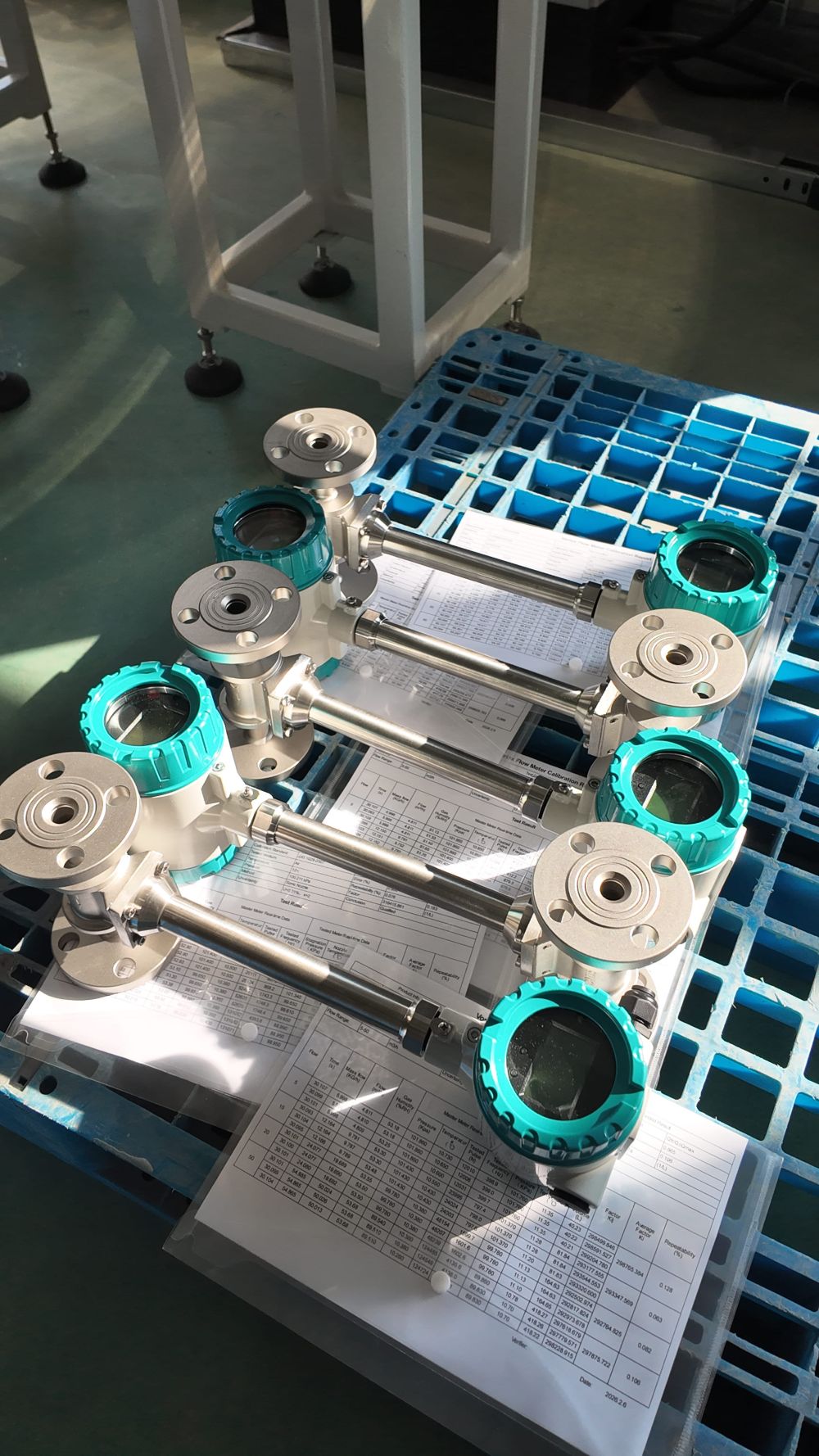

How to Select a Vortex Flowmeter: 8 Key Parameters to Get It Right the First Time
Learn how to select the right vortex flowmeter with 8 essential parameters including flow range, temperature, pressure, and vibration. Avoid costly mistakes and ensure accurate steam, gas, and liquid measurement in industrial applications.
Many buyers start with one question: “How much does a vortex flowmeter cost?”
But price is irrelevant if the meter doesn’t fit your pipeline—or worse, delivers inaccurate data.
The truth is, vortex flowmeter selection is not complicated. If you focus on the 8 critical parameters below, you can confidently choose the right model without trial and error.
1. Medium Type: Steam, Gas, or Liquid?
Vortex flowmeters are highly versatile—but not universal.
Best suited for:
- Steam (saturated or superheated)
- Compressed air, nitrogen, industrial gases
- Water and low-viscosity liquids
Not suitable for:
- High-viscosity fluids (>20 cP), such as heavy oil or glue
→ These dampen vortex formation and cause measurement failure
2. Temperature: Standard or High Temperature?
Temperature directly impacts sensor reliability.
Selection guidelines:
- -40°C to 250°C → Standard type (typical for air, water, saturated steam)
- 250°C to 350°C → High-temperature type
- Remote sensor design
- Equipped with heat dissipation (cooling fins)
Above 350°C?
→ Avoid vortex meters. Consider orifice plates or flow nozzles instead.
3. Pressure: What’s the Operating Pressure?
Vortex flowmeters are available in different pressure ratings:
- PN16 (1.6 MPa)
- PN25
- PN40
Critical insight:
- Don’t just match flange rating
- Ensure actual operating pressure supports stable vortex generation
Low pressure can weaken vortices → unstable or zero signal
4. Pipe Size (DN): Match or Adjust?
Normally, select the same diameter as your pipeline:
- DN25 pipe → DN25 flowmeter
Exception: Low flow velocity
- Gas < 5 m/s
- Liquid < 0.3 m/s
→ Use a reducer (smaller meter size) to increase velocity and ensure detectable vortices
5. Flow Range: Minimum Matters Most
This is where many selections fail.
Key thresholds:
- Liquids: Reynolds number > 20,000
- Gas (air): > 5 m/s
- Steam: > 7 m/s
Below these limits, vortices weaken or disappear → no measurement
Practical tip:
Provide these 3 values to your supplier:
- Normal flow rate
- Maximum flow rate
- Minimum flow rate
They can verify whether the meter operates within a valid range.
6. Pipe Vibration: Is the Line Stable?
Vortex flowmeters are sensitive to vibration.
If vibration is present:
- Pumps, compressors, unstable piping → signal interference
Solution:
- Low vibration → Standard piezoelectric type
- High vibration → Capacitive vortex flowmeter
(up to 10× better vibration resistance)
7. Output Signal: Pulse or 4–20 mA?
Choose based on your control system:
- Pulse output → PLC totalization (flow accumulation)
- 4–20 mA → DCS for real-time flow display
For steam billing or energy management:
- Use integrated temperature & pressure compensation
- Outputs mass flow directly (no external transmitters required)
8. Explosion Protection: Is It a Hazardous Area?
In hazardous environments (chemical plants, gas stations):
Two main options:
- Intrinsically Safe (Ex ia)
- Requires safety barriers
- Low power design
- Explosion-Proof (Ex d)
- Rugged enclosure
- Direct field installation
⚠️ Never install a non-explosion-proof meter in hazardous zones.
Conclusion: Focus on Fit, Not Just Price
Selecting a vortex flowmeter isn’t about complexity—it’s about matching the instrument to your process conditions.
If you verify these 8 parameters:
- Medium
- Temperature
- Pressure
- Pipe size
- Flow range
- Vibration
- Output
- Explosion protection
You’ll avoid 90% of common mistakes and ensure stable, accurate, and long-term performance.
